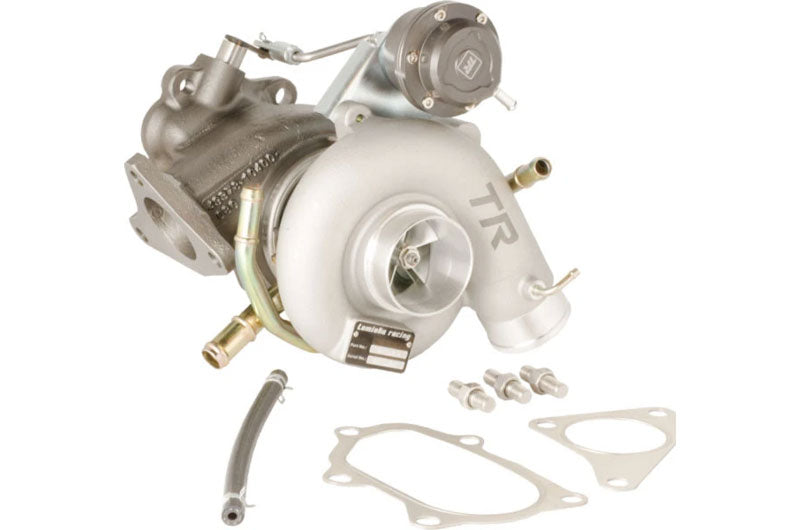

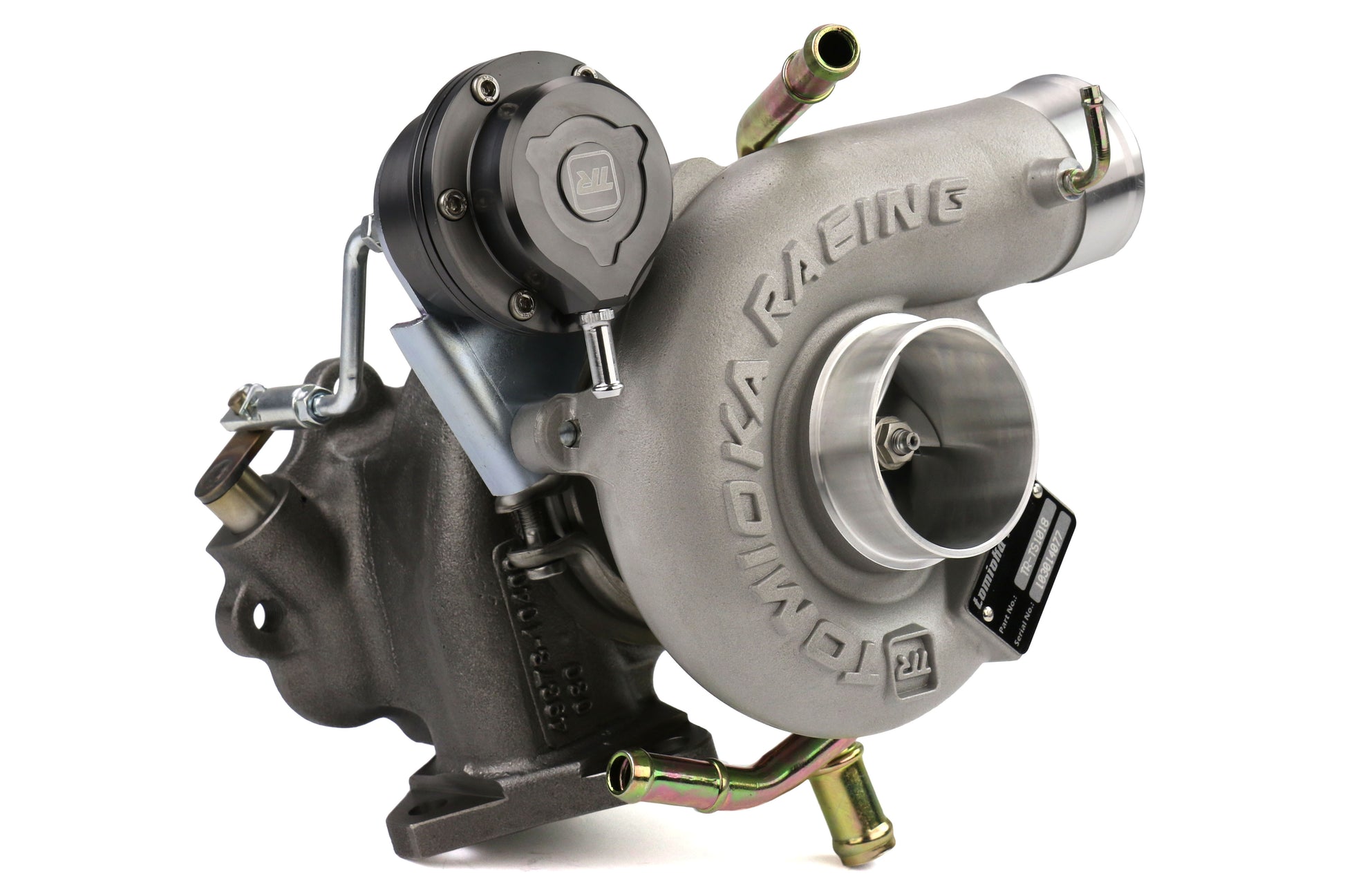

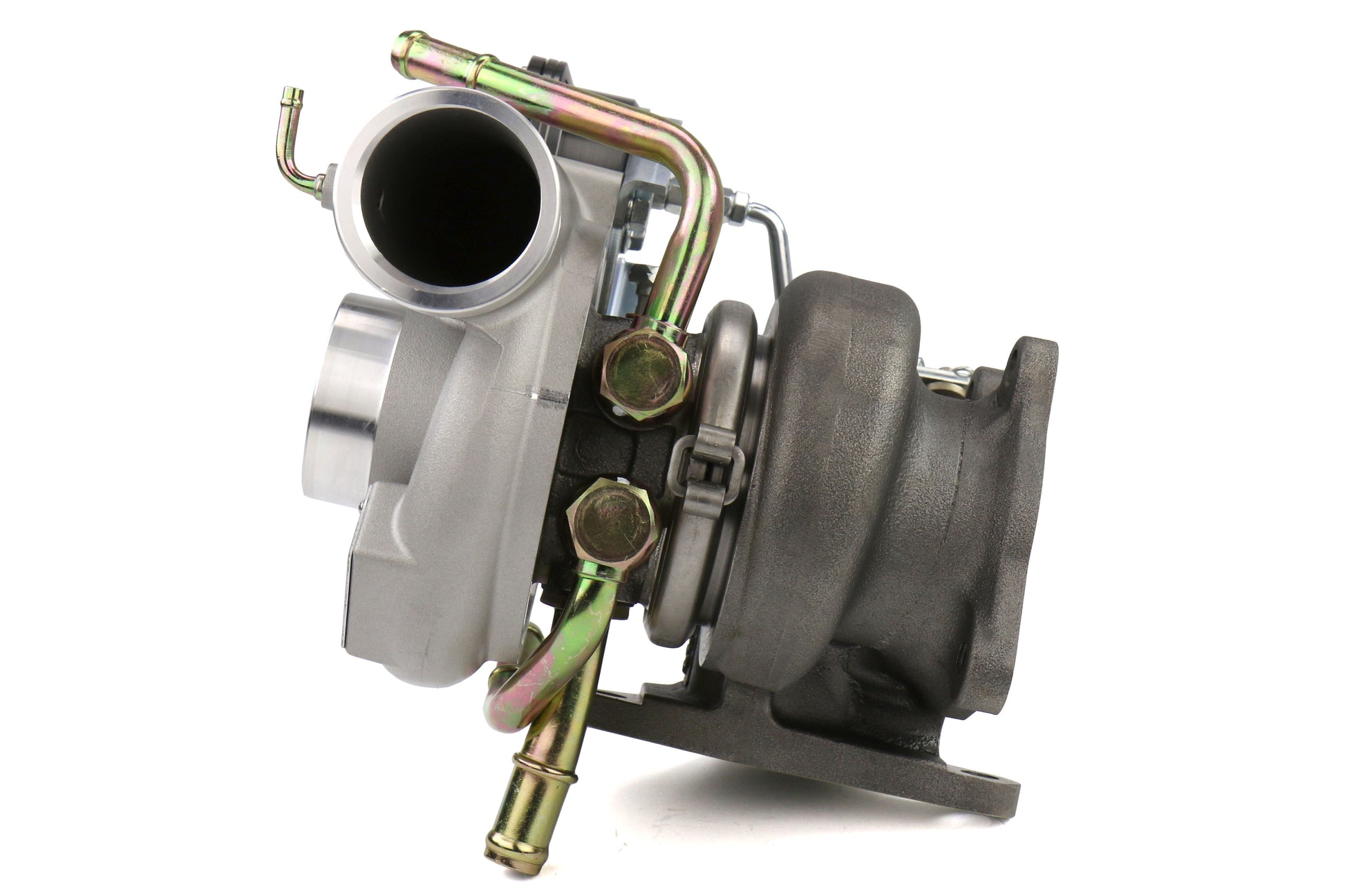

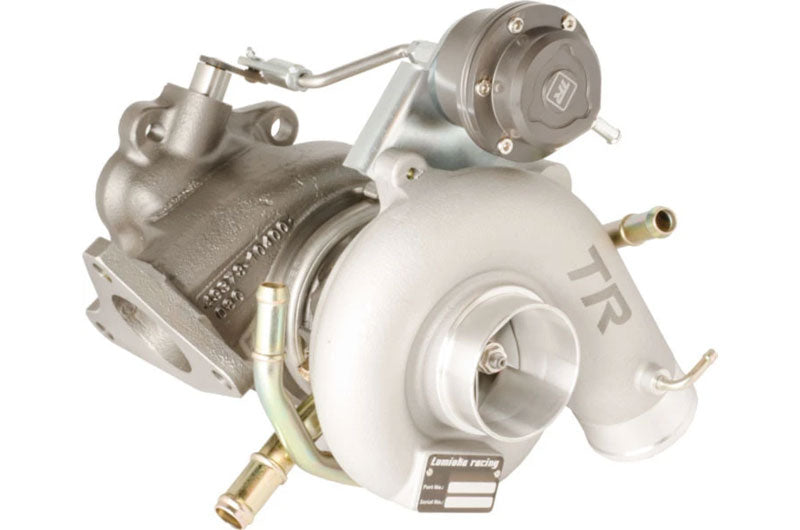

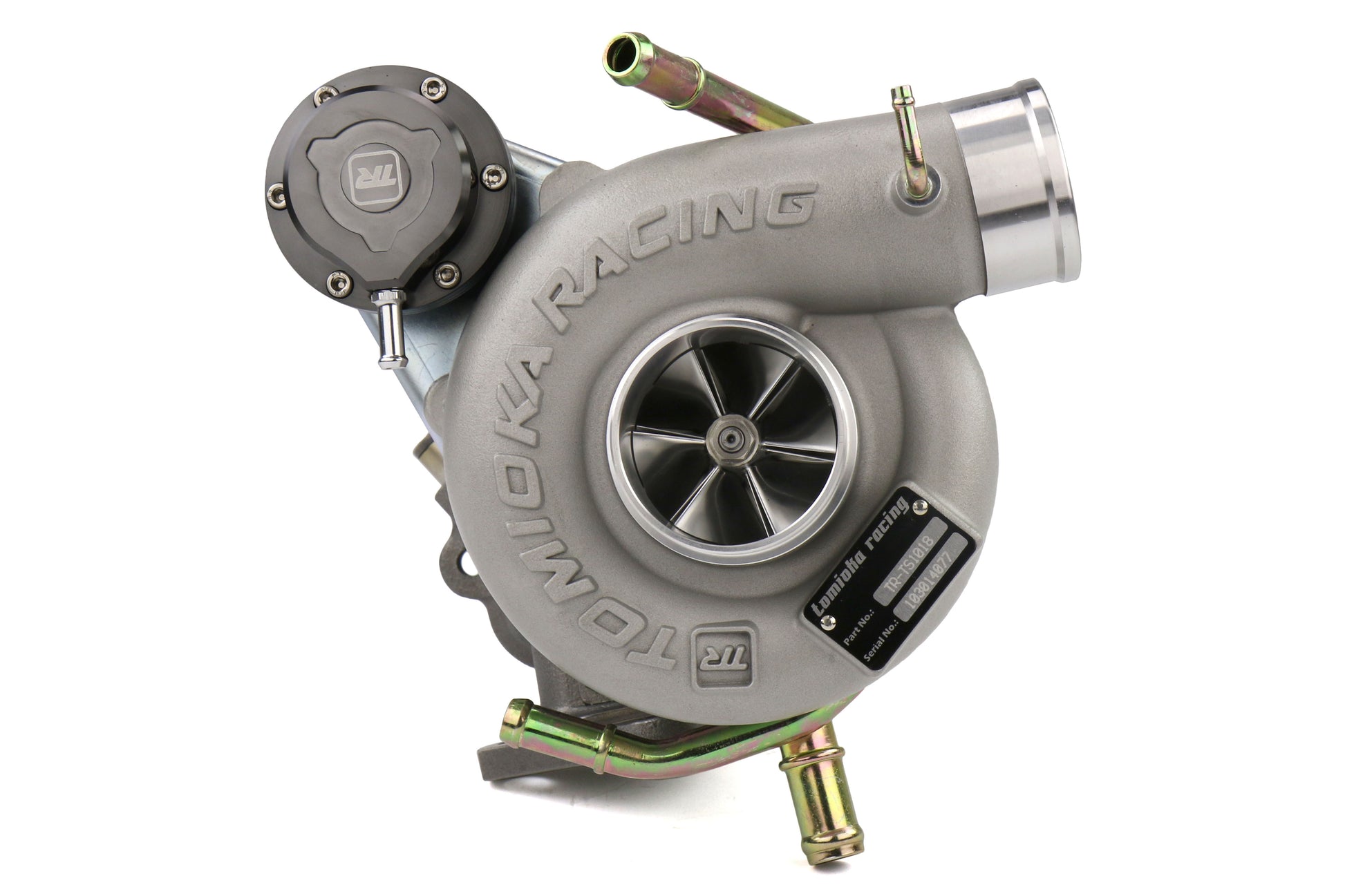

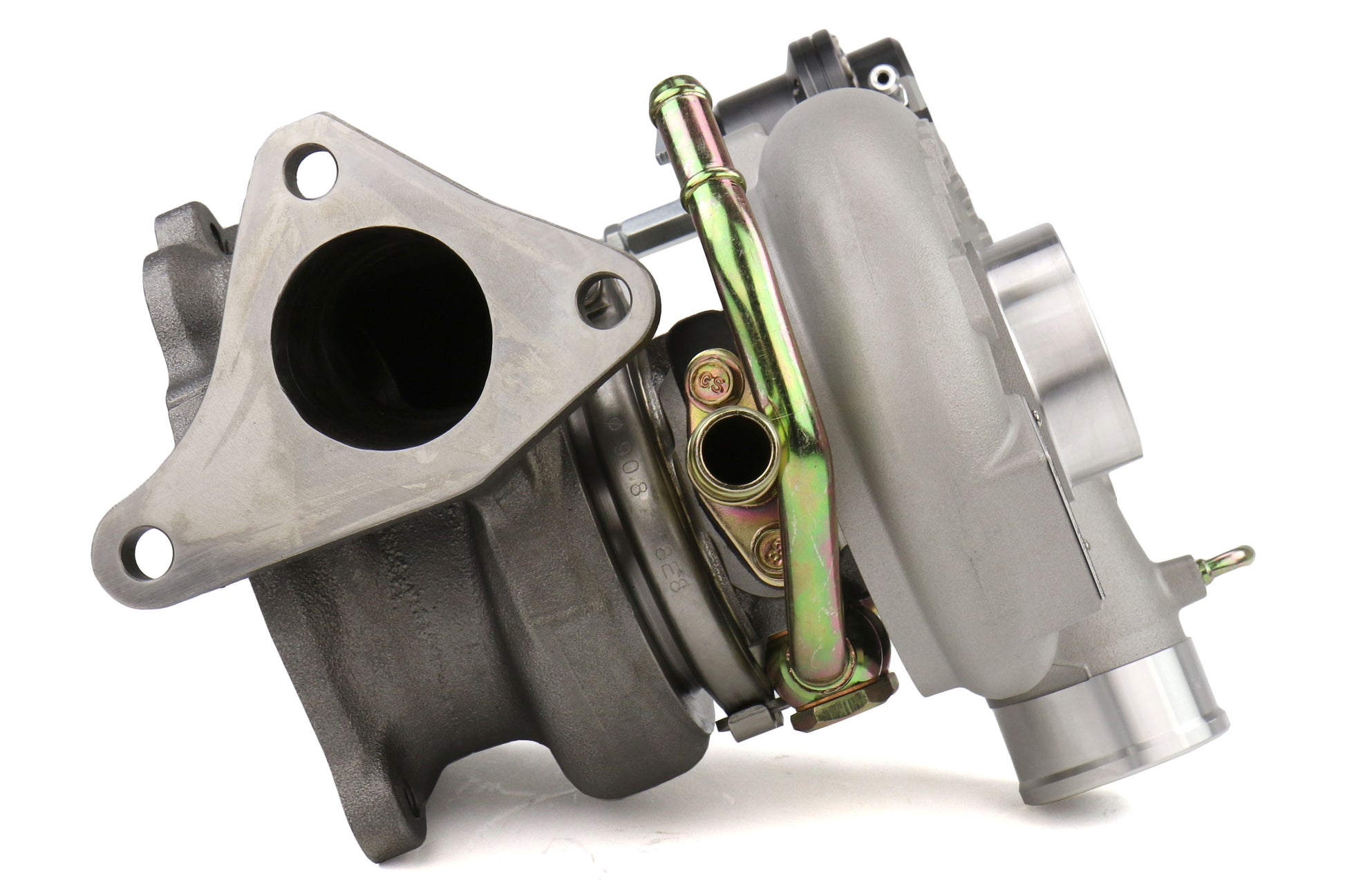

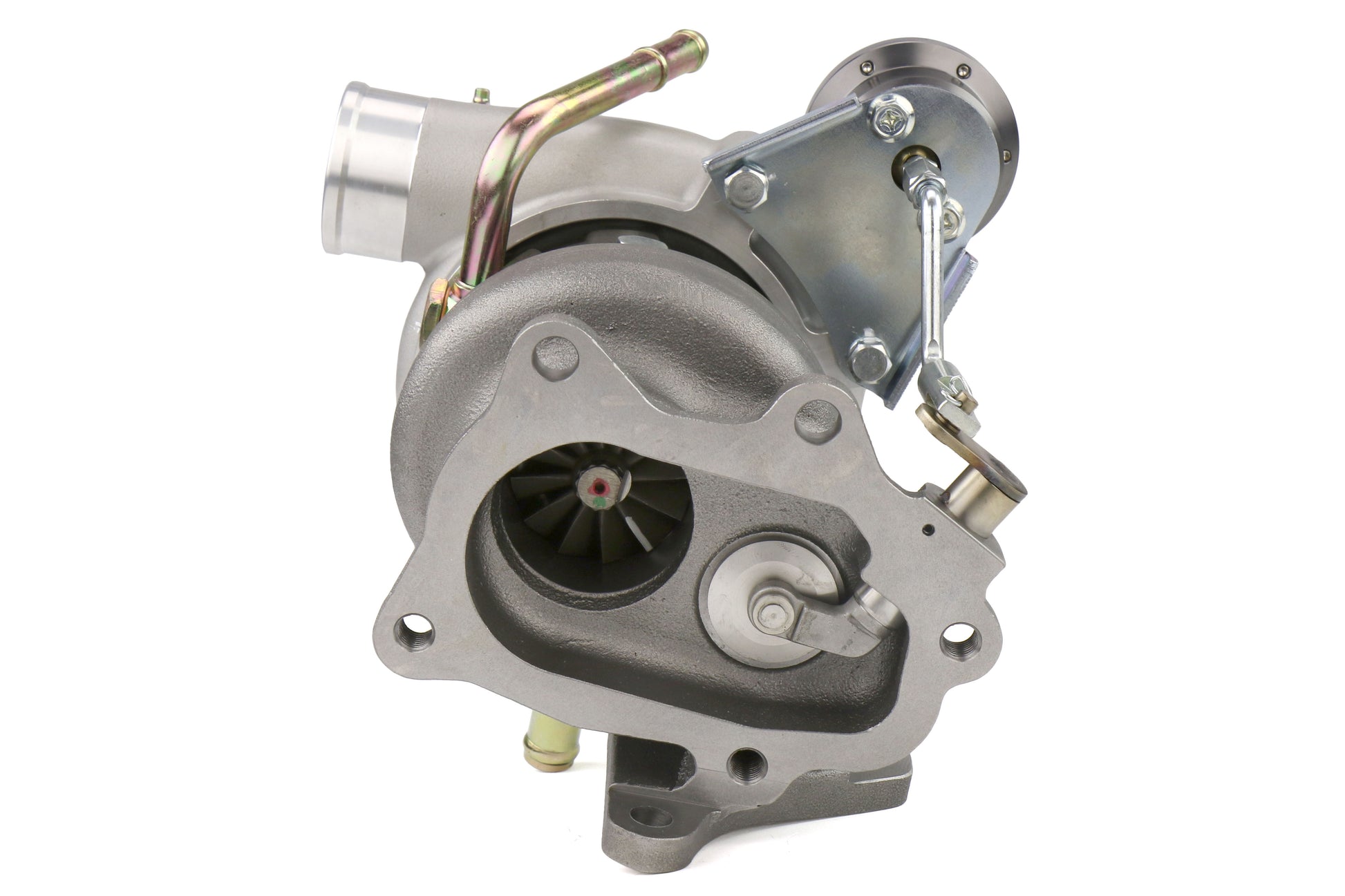

Tomioka Racing TD05-20G Turbo with Billet Wheel and Actuator - 2015-2021 Subaru STI

This particular model features the billet compressor wheel, as well as the billet actuator and can support up to 480 HP.

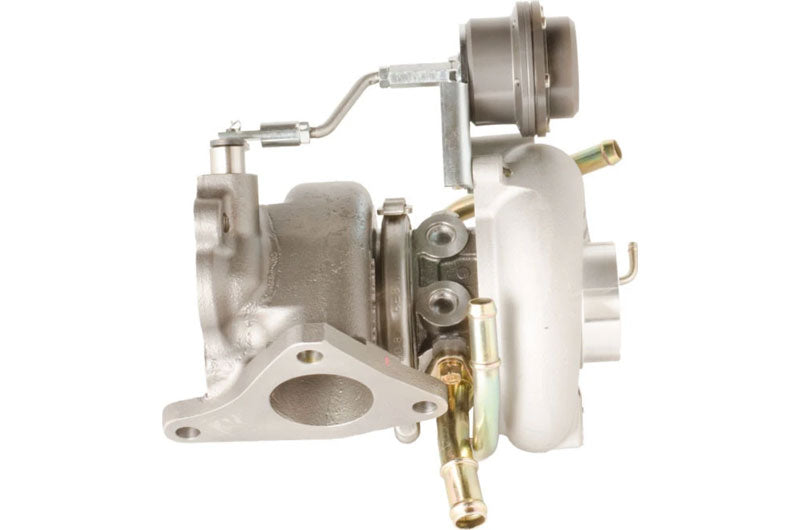

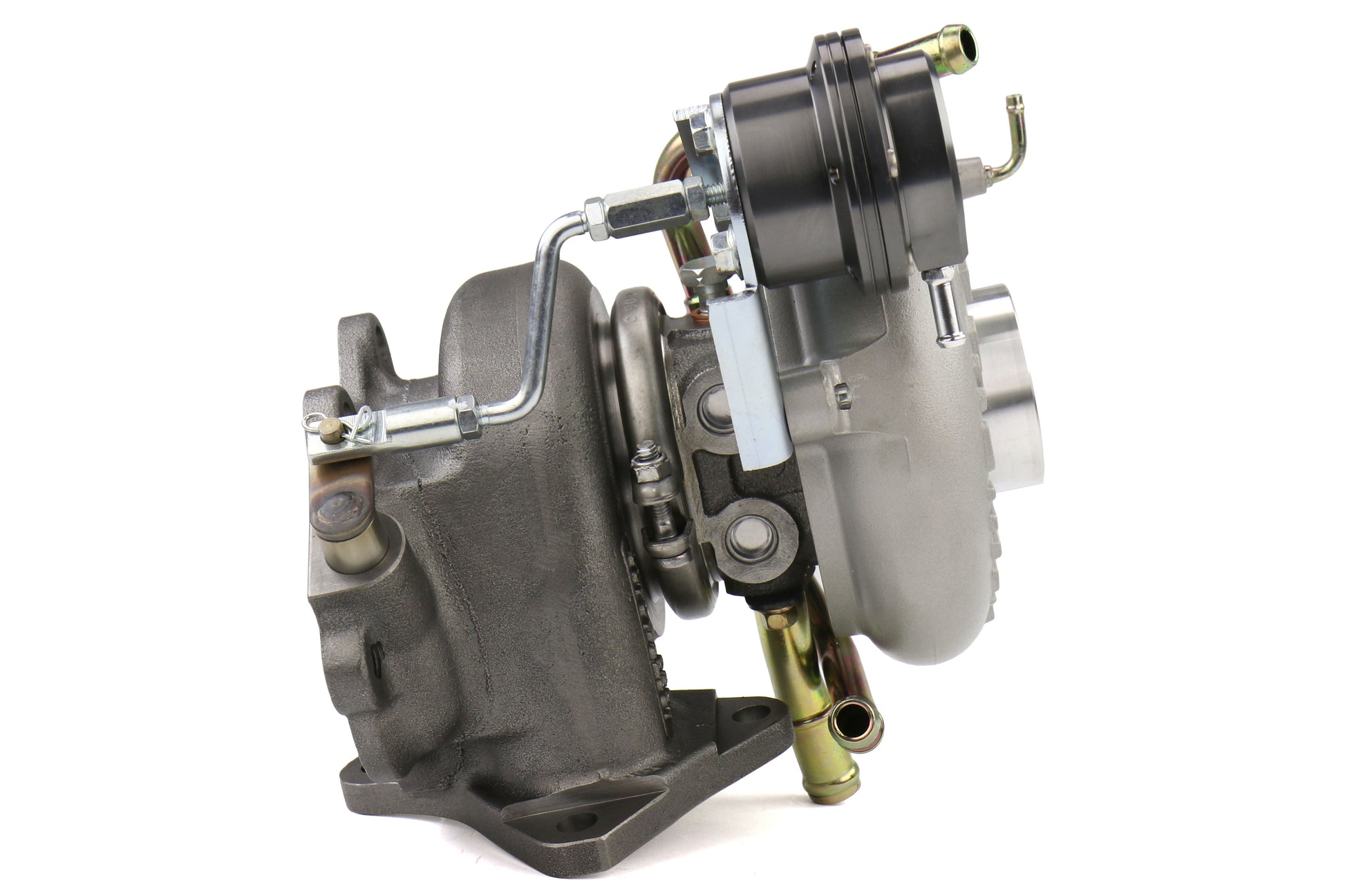

Tomioka Racing TD05-20G Turbo with Billet Wheel and Actuator

Highlights

• Journal bearing type
• Billet compressor wheel option
• Standard Subaru 5-bolt flange type
• Compressor wheel inducer: 50.3mm
• Compressor wheel exducer: 68mm
• Turbine wheel inducer: 56mm
• Turbine wheel exducer: 49.2mm
• 1.3 BAR/19psi billet wastegate actuator
• Turbine housing: 8cm
• Max power rating: 480 HP

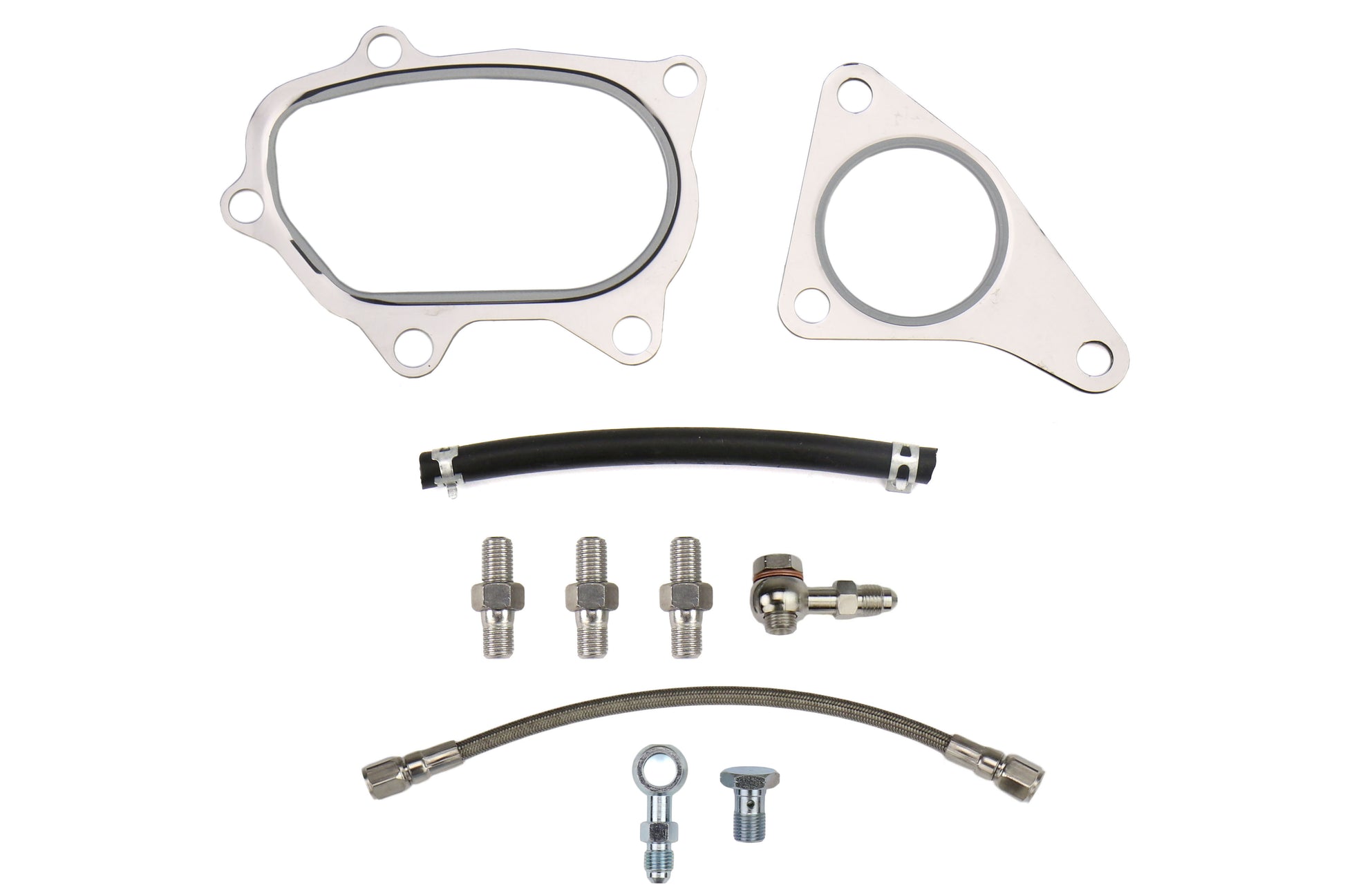

• Includes oil pipe
• Includes water pipe
• Includes new gaskets
• Includes hardware kit

The popular stock replacement TR TD05-20G turbo now comes in billet wheel. Potentially increasing performance from VF39 and TD04 turbo and at least 10% more efficient than the regular TD05-18G. The billet upgrade has a rating of 400HP, a truly perfect turbo for daily driving Subaru!
