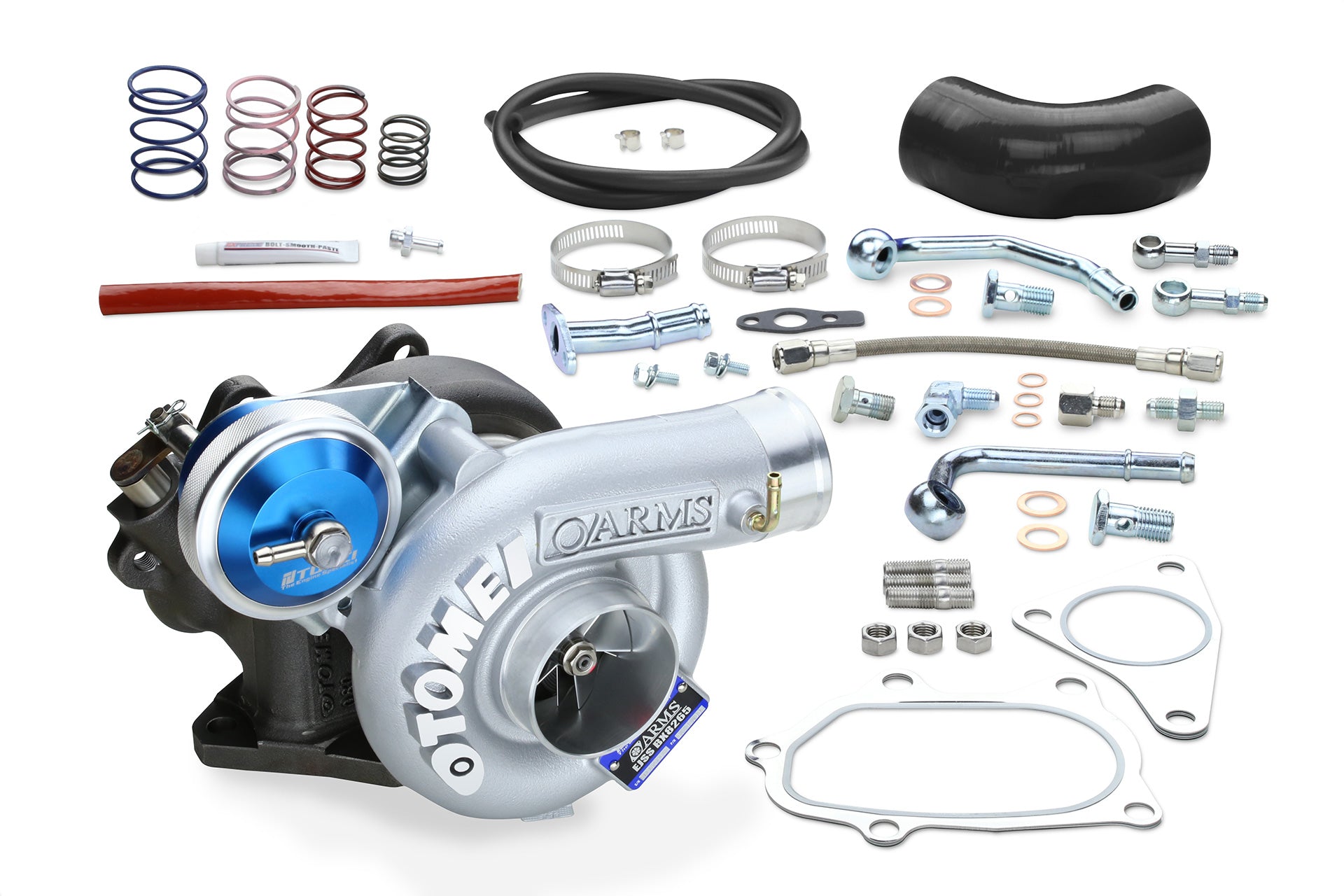

Tomei ARMS BX8265 Turbo - 2002-2007 Subaru WRX / 2004-2021 STI

Tomei ARMS BX8265 Turbo

CNC BILLET COMPRESSOR WHEEL:

• Machined from aerospace-grade materials
• Highly durable and lightweight
• Made with thinner blades with a larger surface area
• Improves the airflow and turbo spool

MULTI-RATE BILLET ACTUATOR:

• Large capacity
• Reinforced forged billet construction
• Includes a total of (6) springs for fine boost adjustments
• The swivel-type nipple allows for greater freedom when routing hoses
• You can combine up to (3) springs to find the perfect setup

BX8265 FEATURES:

• Rated up to 450 HP with supporting modifications
• Ball-bearing type
• 1.0 BAR initial boost setting
• Single-scroll type

COMPRESSOR WHEEL SPECS:

• 52.8mm inducer
• 76.2mm exducer
• 52 trim
• 6/6 blades
• CNC billet A2618 construction

TURBINE WHEEL SPECS:

• 58.8mm exducer
• 67mm inducer
• 77 trim
• 9 blades
• Cast K418 construction

COMPRESSOR HOUSING SPECS:

• 55.8mm inducer
• 41.5mm exducer
• A/R: 0.78

TURBINE HOUSING SPECS:

• 45.0mm inducer
• EJ exducer
• A/R: 0.57

BX Series

This is the new Tomei BX-Series Ball-Bearing Turbocharger. The BX-Series is Tomei's latest ball-bearing turbocharger example that features the latest in turbocharger technology. This turbocharger features a CNC billet compressor wheel for durability over the conventional cast compressor wheel, and it also features Tomei's Multi-Rate Billet Actuator to allow the user to perform fine-tuning of the boost so you can hit your preferred targets every time.
