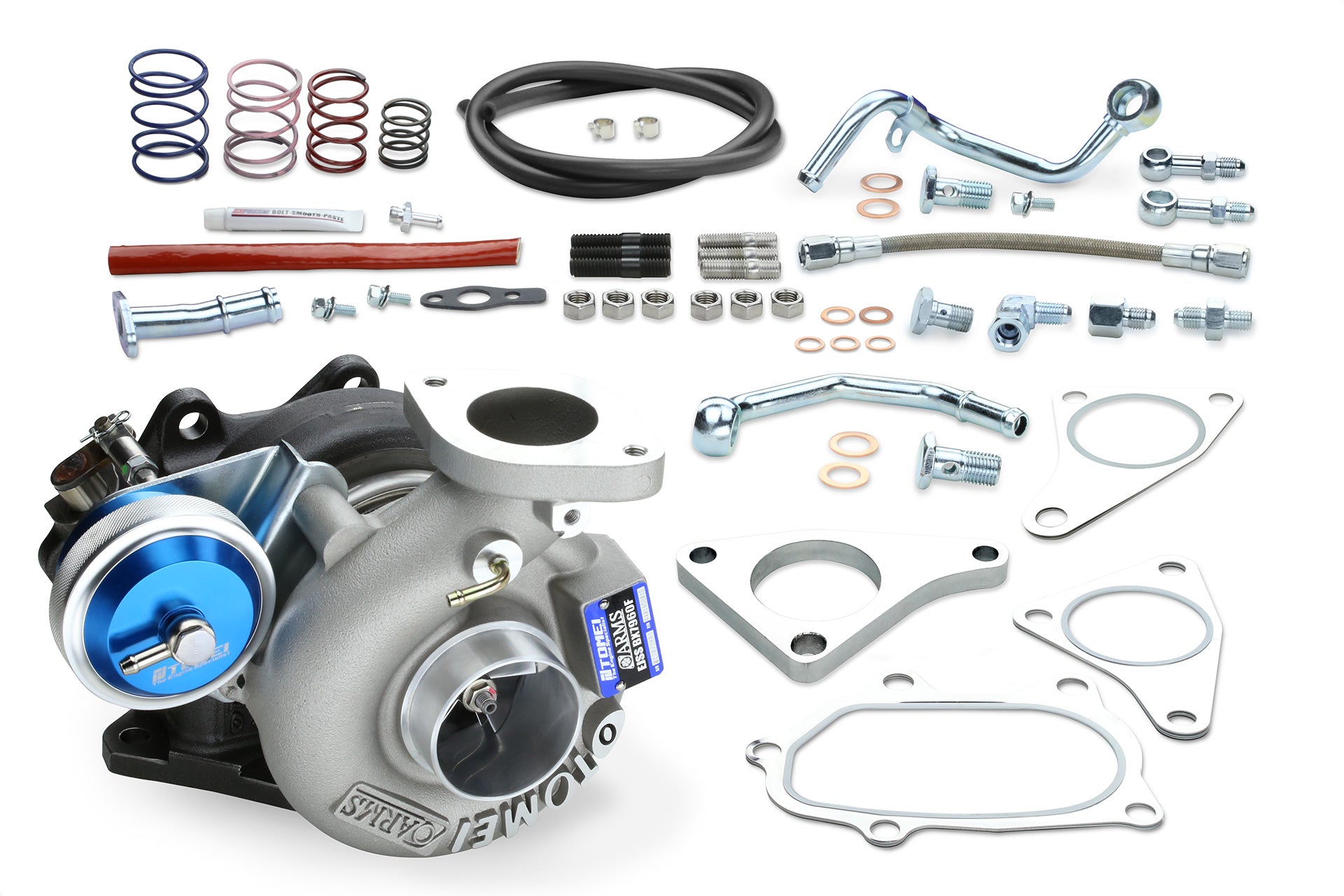

Tomei ARMS BX7960F Turbo - 2008-2014 Subaru WRX / 2005-2009 Subaru Legacy GT / Outback

HIGHLIGHTS:

• Rated to 400 WHP with supporting modifications
• Engineered utilizing the latest in turbocharger technology
• Direct bolt-on upgrade

Tomei ARMS BX7960F Turbo

CNC BILLET COMPRESSOR WHEEL:

• Machined from aerospace-grade materials
• Highly durable and lightweight
• Made with thinner blades with a larger surface area
• Improves the air flow and turbo spool

MULTI-RATE BILLET ACTUATOR:

• Large capacity
• Reinforced forged billet construction
• Includes a total of (6) springs for fine boost adjustments
• The swivel-type nipple allows for greater freedom when routing hoses
• You can combine up to (3) springs to find the perfect setup

BX7960F FEATURES:

• Rated up to 400 HP with supporting modifications
• Ball-bearing type
• 1.0 BAR initial boost setting
• Single-scroll type

COMPRESSOR WHEEL SPECS:

• 52.6mm inducer
• 68mm exducer
• 60 trim
• 6/6 blades
• CNC billet A2618 construction

TURBINE WHEEL SPECS:

• 54mm exducer
• 61mm inducer
• 79 trim
• 9 blades
• Cast K418 construction

COMPRESSOR HOUSING SPECS:

• 53.46mm inducer
• 44.2mm exducer
• A/R: 0.78

TURBINE HOUSING SPECS:

• 45.0mm inducer
• EJ exducer
• A/R: 0.57

READY TO REPLACE THAT OEM TURBOCHARGER WITH A POWERFUL TOMEI UNIT?

The Tomei BX-Series Ball-Bearing Turbocharger is Tomei's latest ball-bearing turbocharger example that features the latest in turbocharger technology. This turbocharger features a CNC billet compressor wheel for durability over the conventional cast compressor wheel, and it also features Tomei's Multi-Rate Billet Actuator to allow the user to perform fine-tuning of the boost so you can hit your preferred targets every time.
