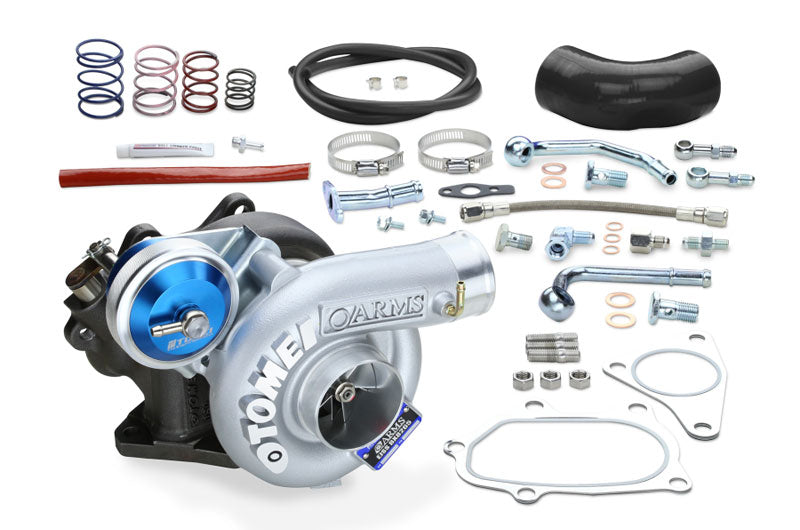

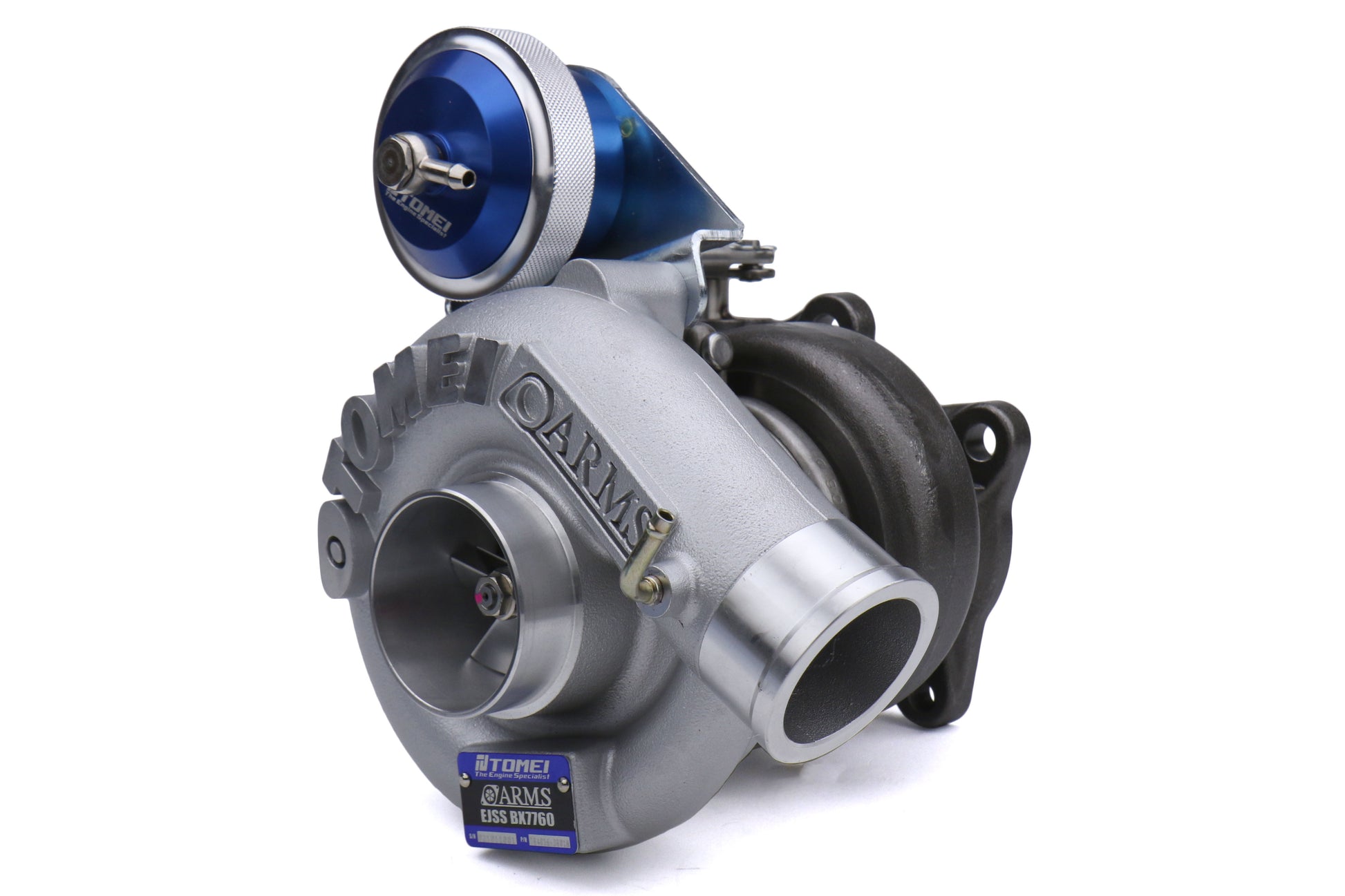

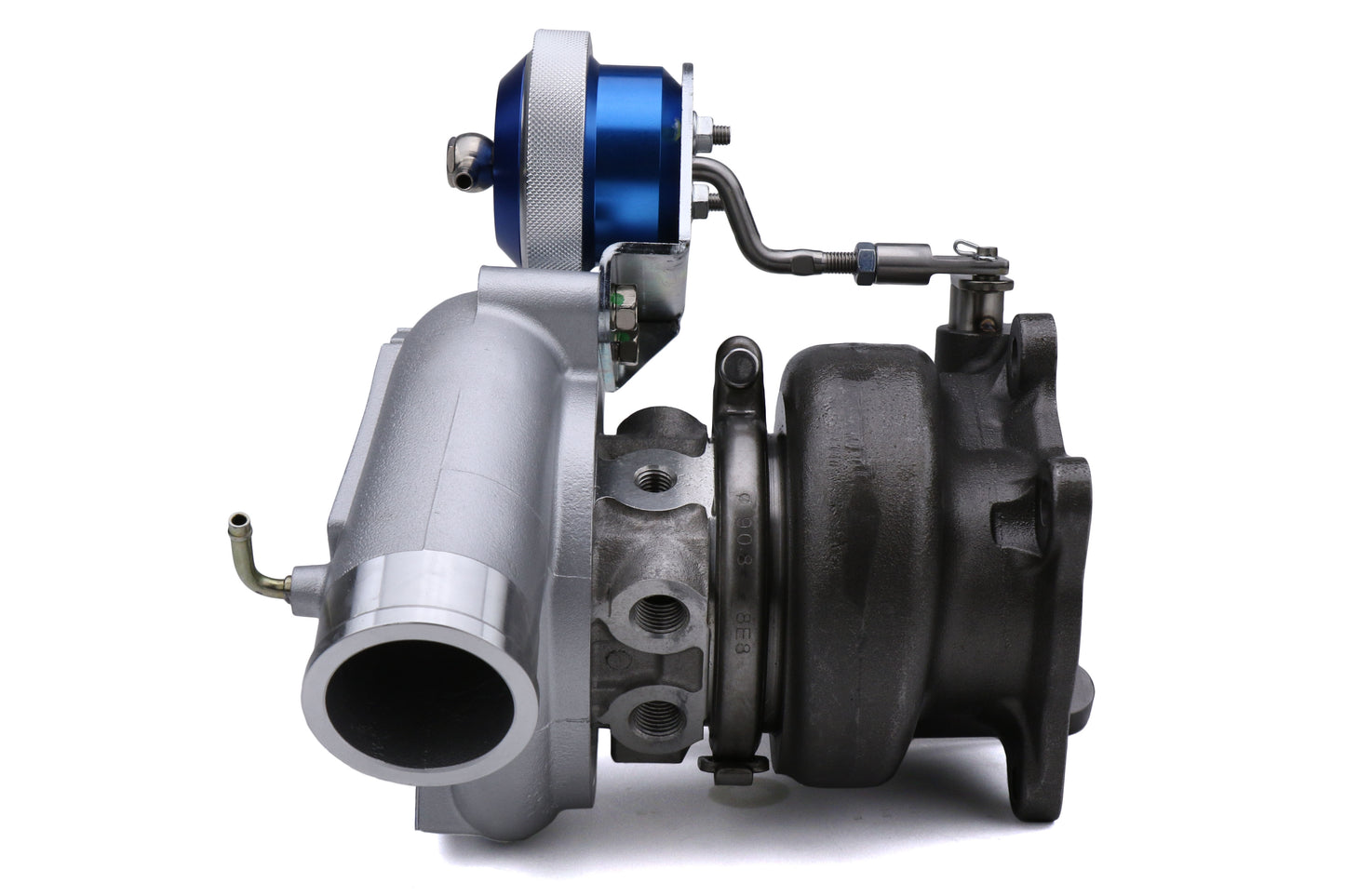

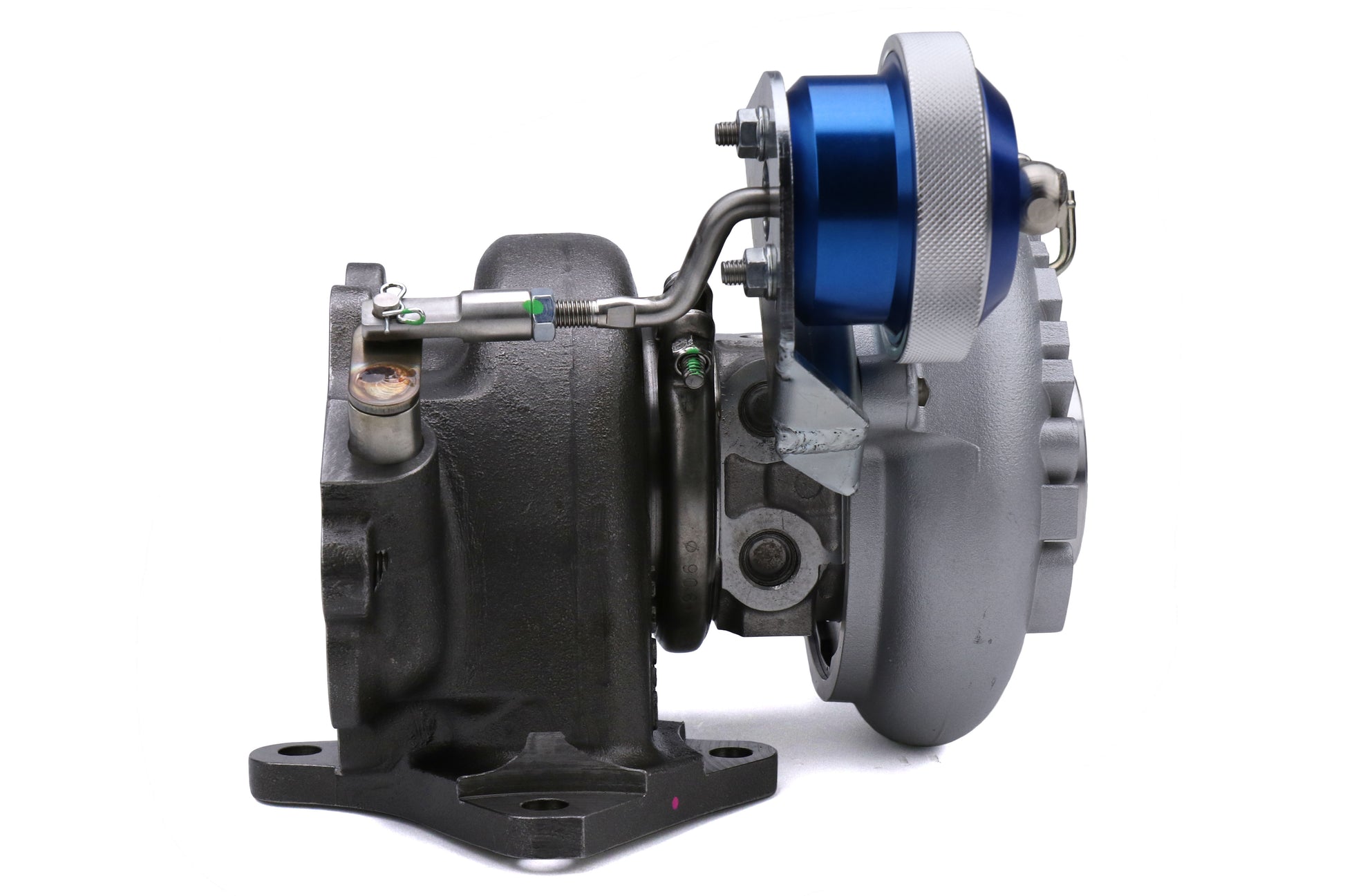

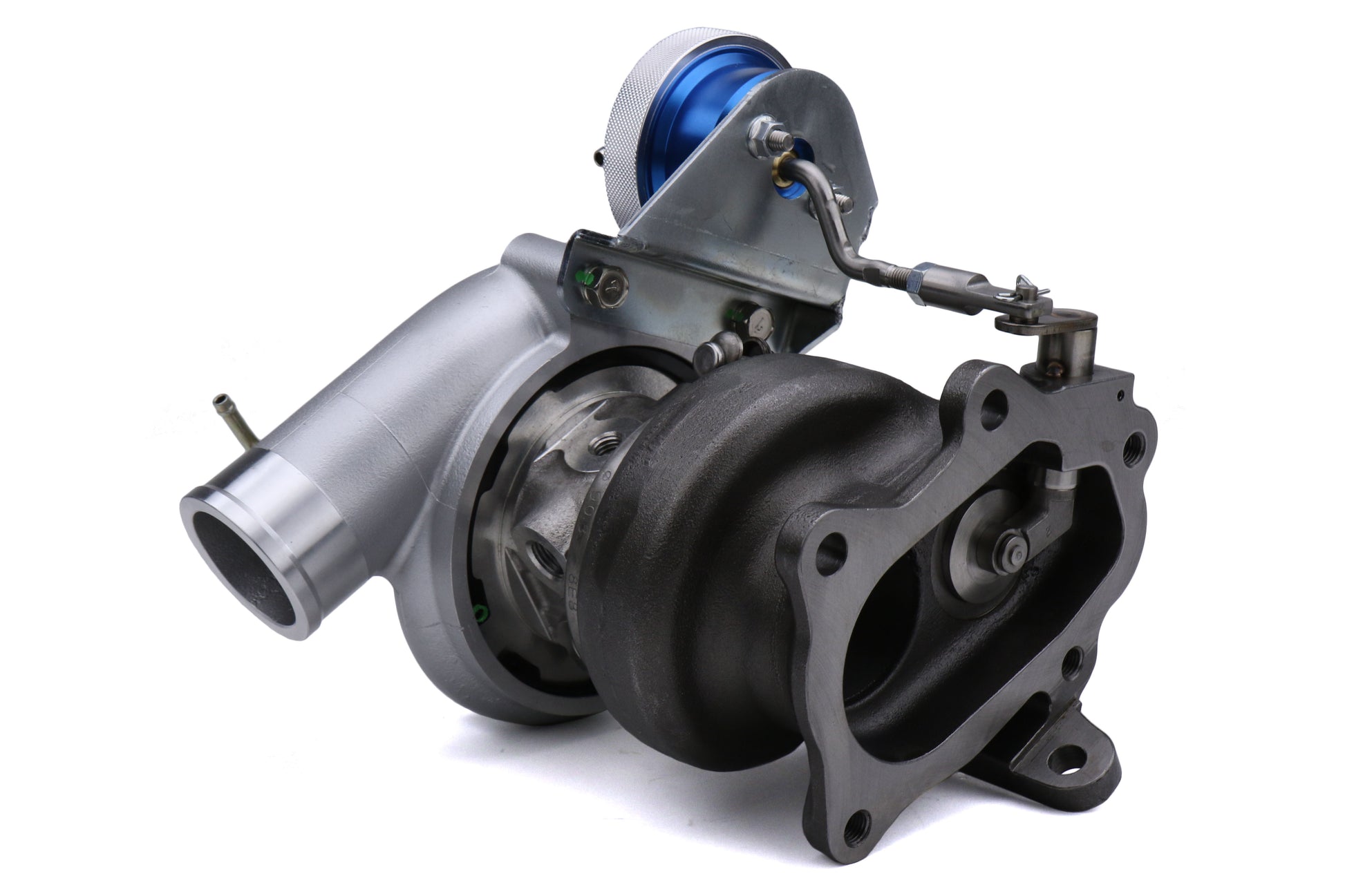

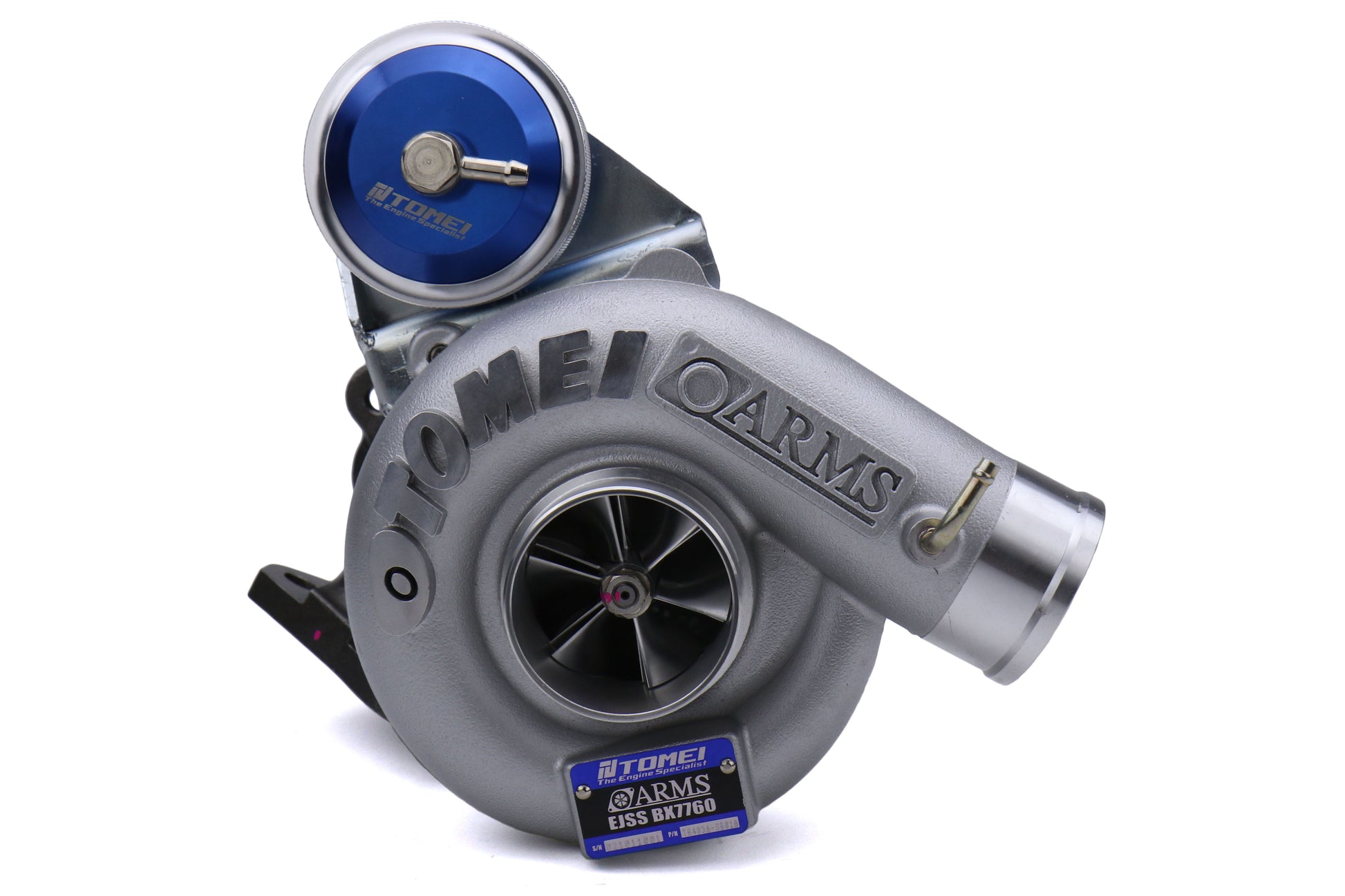

Tomei ARMS BX7760 Turbo - 2015-2021 Subaru STI / 2004-2008 Forester
Tomei ARMS BX7760 Turbo - 2015-2021 Subaru STI / 2004-2008 Forester
Couldn't load pickup availability
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Tomei ARMS BX7760 Turbo
Highlights
- Rated up to 380 HP with supporting modifications
- Ball-bearing type
- 1.0 BAR initial boost setting
- Single-scroll type
CNC BILLET COMPRESSOR WHEEL:
- Machined from aerospace-grade materials
- Highly durable and lightweight
- Made with thinner blades with a larger surface area
- Improves the air flow and turbo spool
TURBINE WHEEL SPECS:
- 49.1mm exducer
- 56mm inducer
- 77 trim
- 9 blades
- Cast K418 construction
MULTI-RATE BILLET ACTUATOR:
- Large capacity
- Reinforced forged billet construction
- Includes a total of (6) springs for fine boost adjustments
- The swivel-type nipple allows for greater freedom when routing hoses
- You can combine up to (3) springs to find the perfect setup
COMPRESSOR WHEEL SPECS:
- 52.6mm inducer
- 68mm exducer
- 60 trim
- 6/6 blades
- CNC billet A2618 construction
COMPRESSOR HOUSING SPECS:
- 53.6mm inducer
- 41.63mm exducer
- A/R: 0.78
TURBINE HOUSING SPECS:
- 45.0mm inducer
- EJ exducer
- A/R: 0.57
Faster Track Times
The BX-Series is Tomei's latest ball-bearing turbocharger example that features the latest in turbocharger technology. This turbocharger features a CNC billet compressor wheel for durability over the conventional cast compressor wheel, and it also features Tomei's Multi-Rate Billet Actuator to allow the user to perform fine-tuning of the boost so you can hit your preferred targets every time.
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
