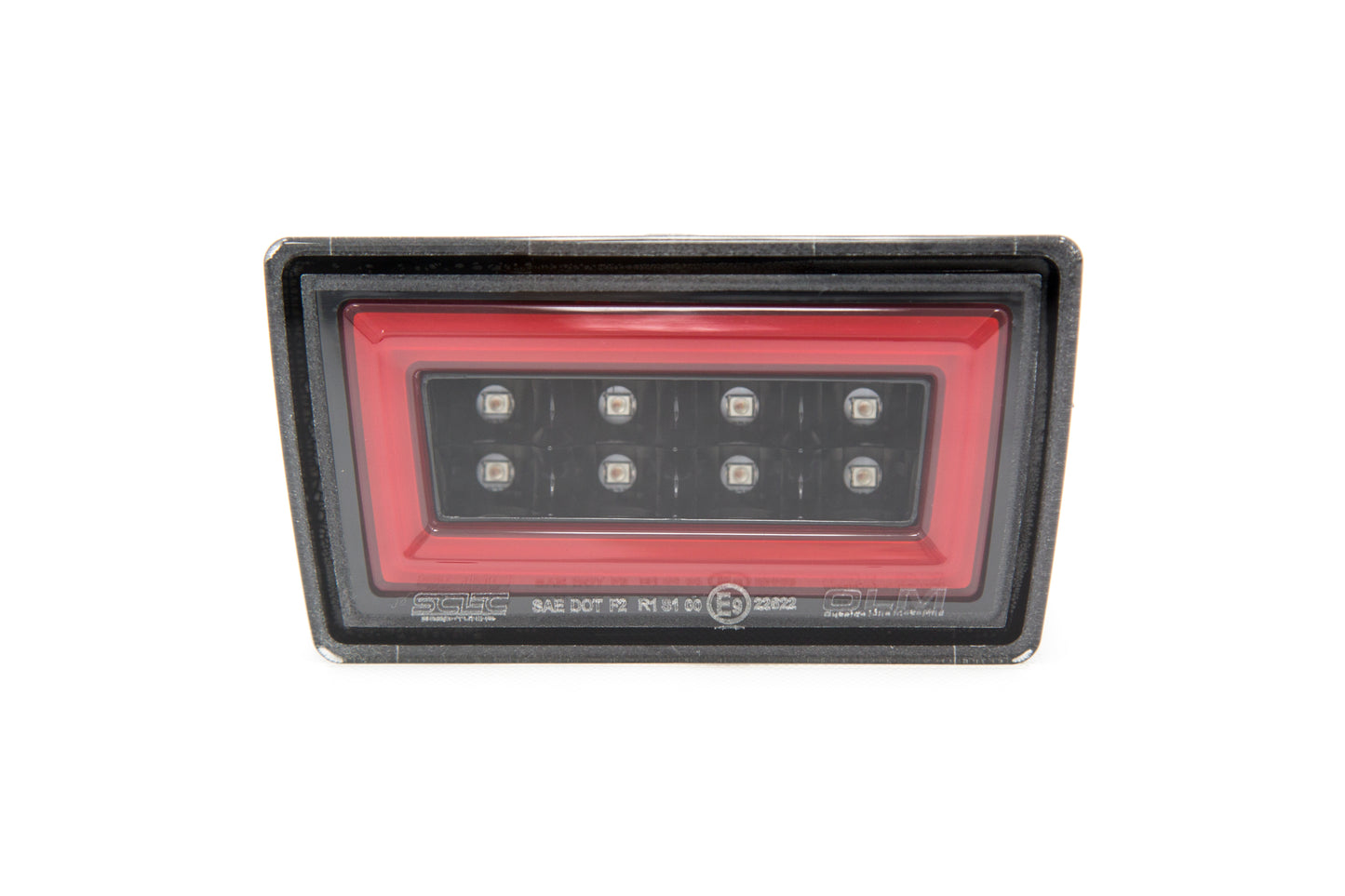

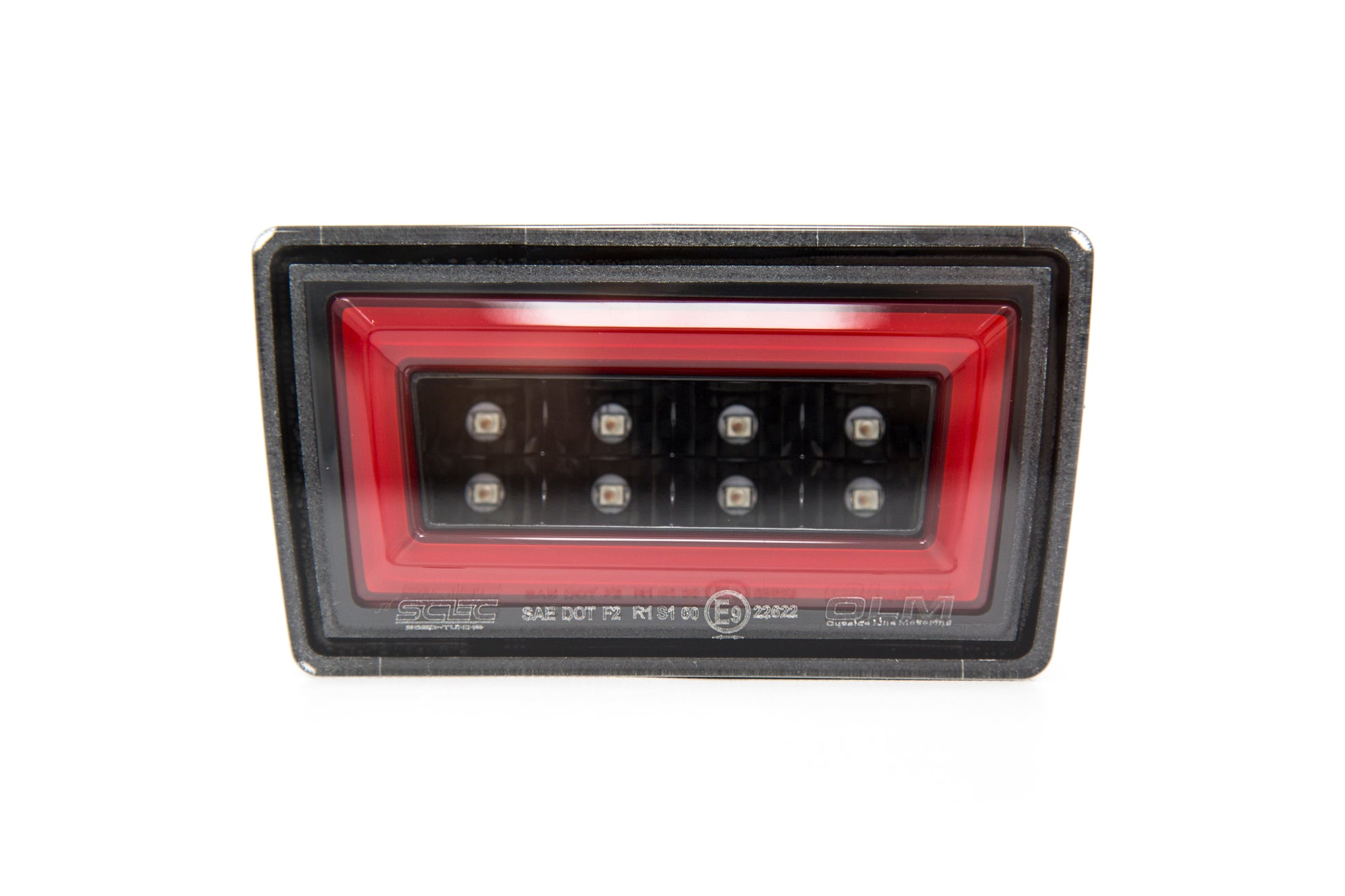

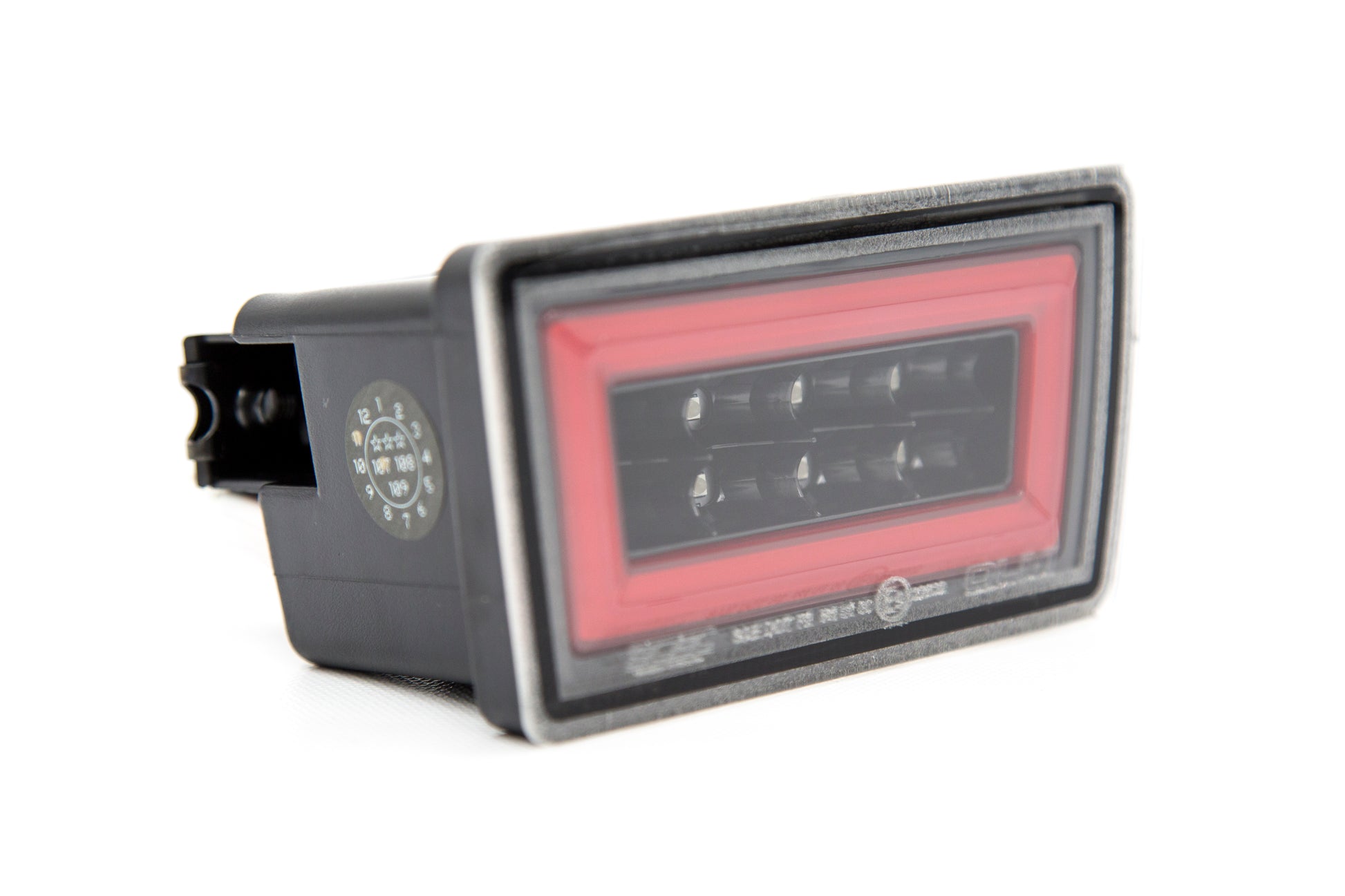

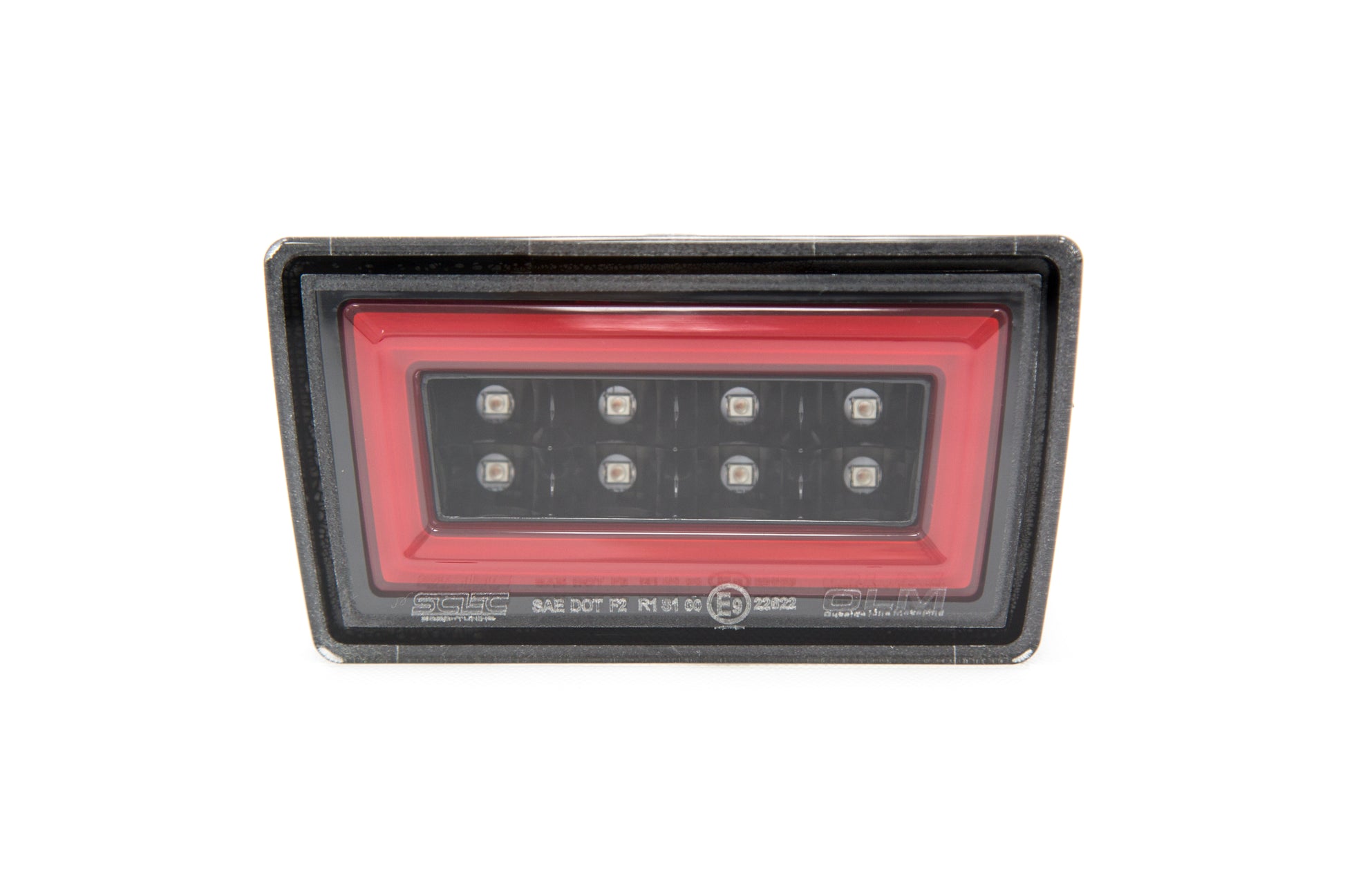

USDM vehicles were not equipped with a rear fog light from the factory. They only have a plastic cap covering up the center of the rear bumper. No lamp, mounting bracket, mounting hardware, or wiring. OLM now has an F1 style lamp for the 2015-2021 WRX / STI. This also fits the 2013-2017 Crosstrek.
This OLM lamp includes the required parts to mount it to your USDM vehicle.
2 Modes easily switched from driver seat. 15 blinks each time the brake pedal is pressed, and then you have your traditional style brake light.
Plug and Play Harness - Included This item will allow you to wire your new light without tapping the factory wires. This speeds up the install and allows you to return your vehicle to a completely stock setup.
NOTE: Plug and play harness is not compatible with the Crosstrek.
NOTE: To turn off the blinking, step on the brake and then switch the lights (parking) on and off three times.
Red Wire - Brake Light Positive
Black Wire - Ground / Negative
Blue - Running Light Positive
NOTE: Wiring for the Crosstrek can be routed directly to the tail light which has it's connectors on the OUTSIDE of the vehicle and not inside the cabin.

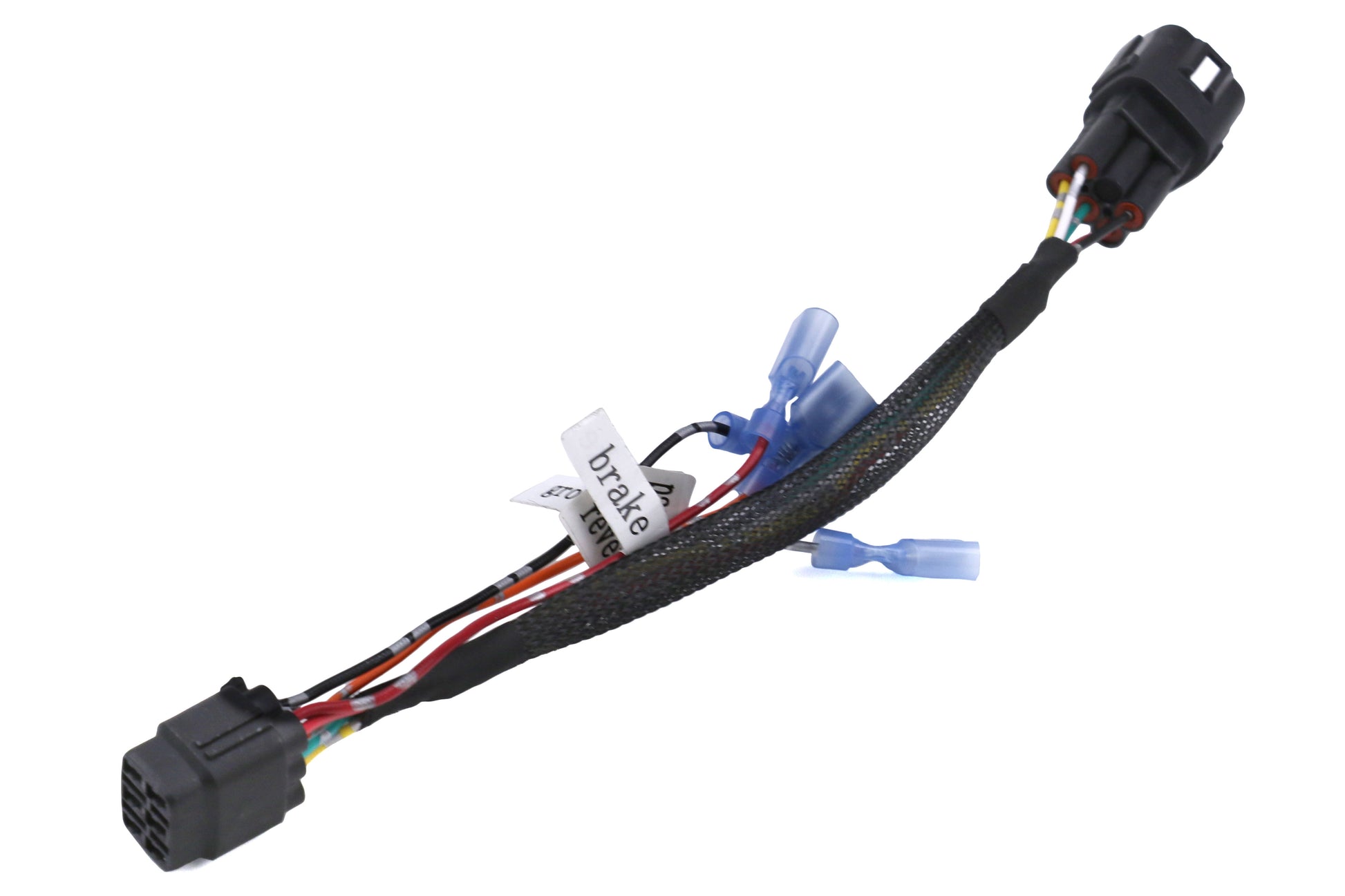

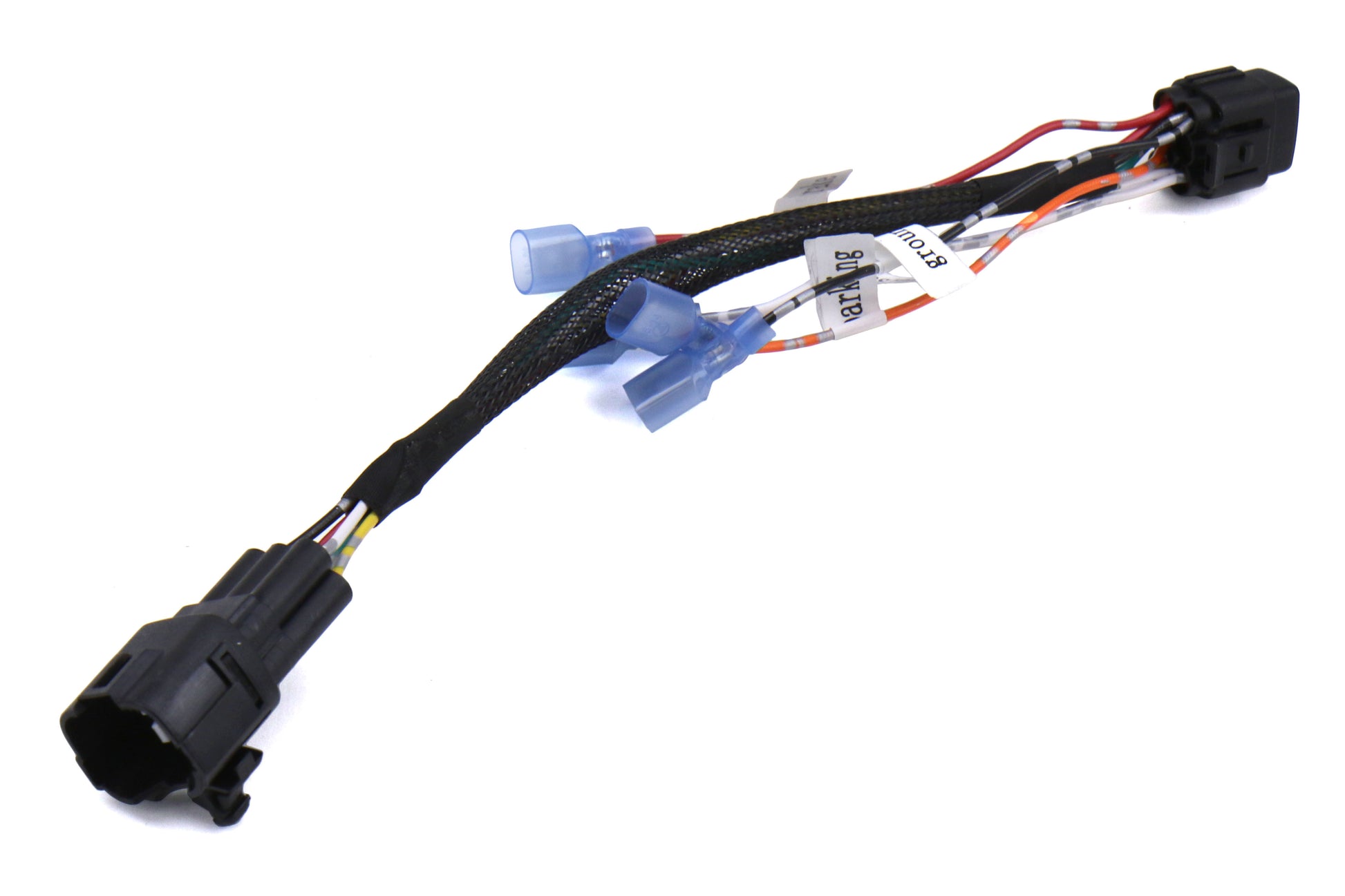

This harness speeds up the install process. The stock wiring harness in the WRX / STI can be hard to crimp as the area is tight. Also owners who wish to return their setup to stock at any point and time can do so easily with this harness.
Plug and Play Harness Is Included.

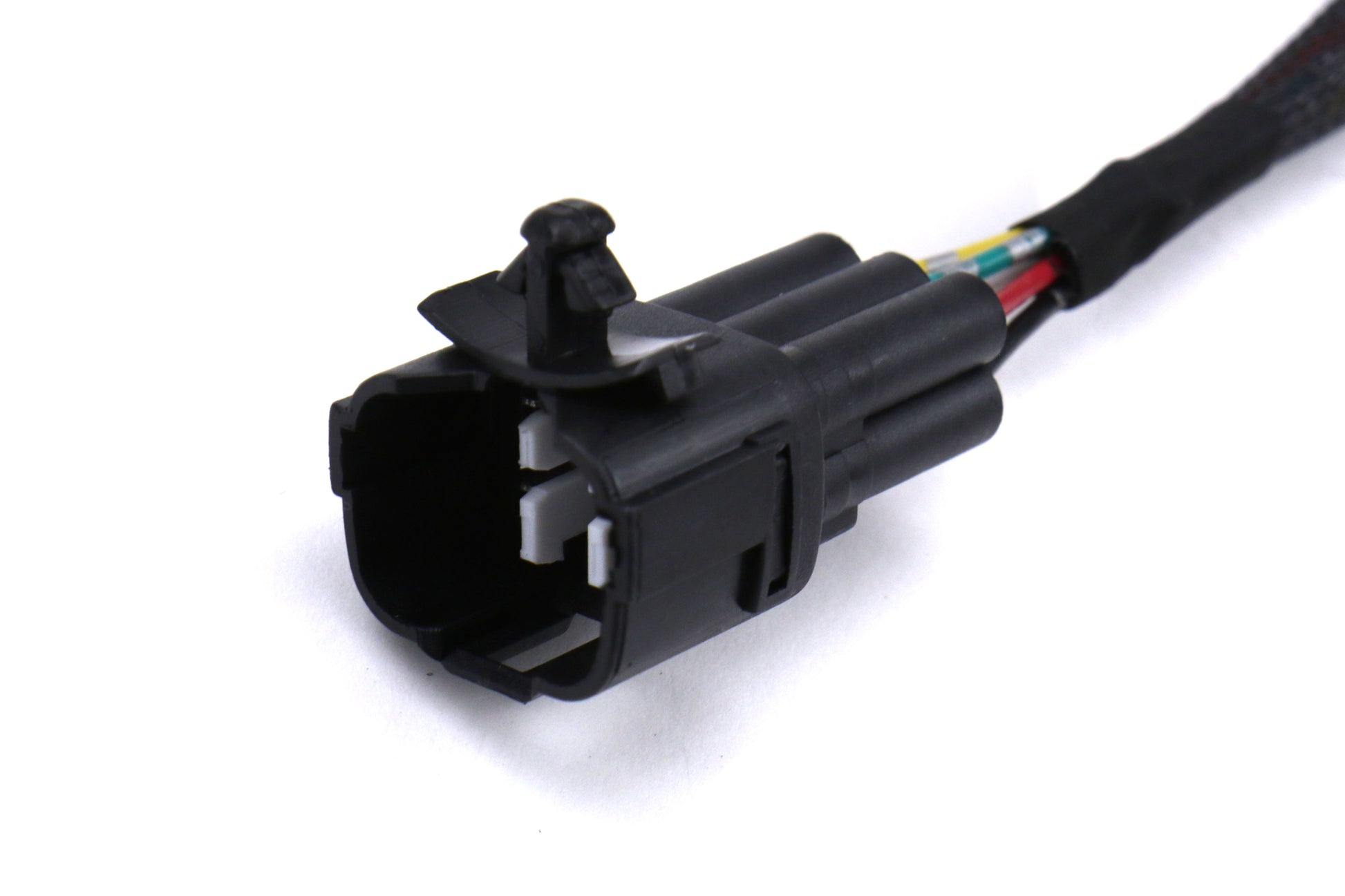

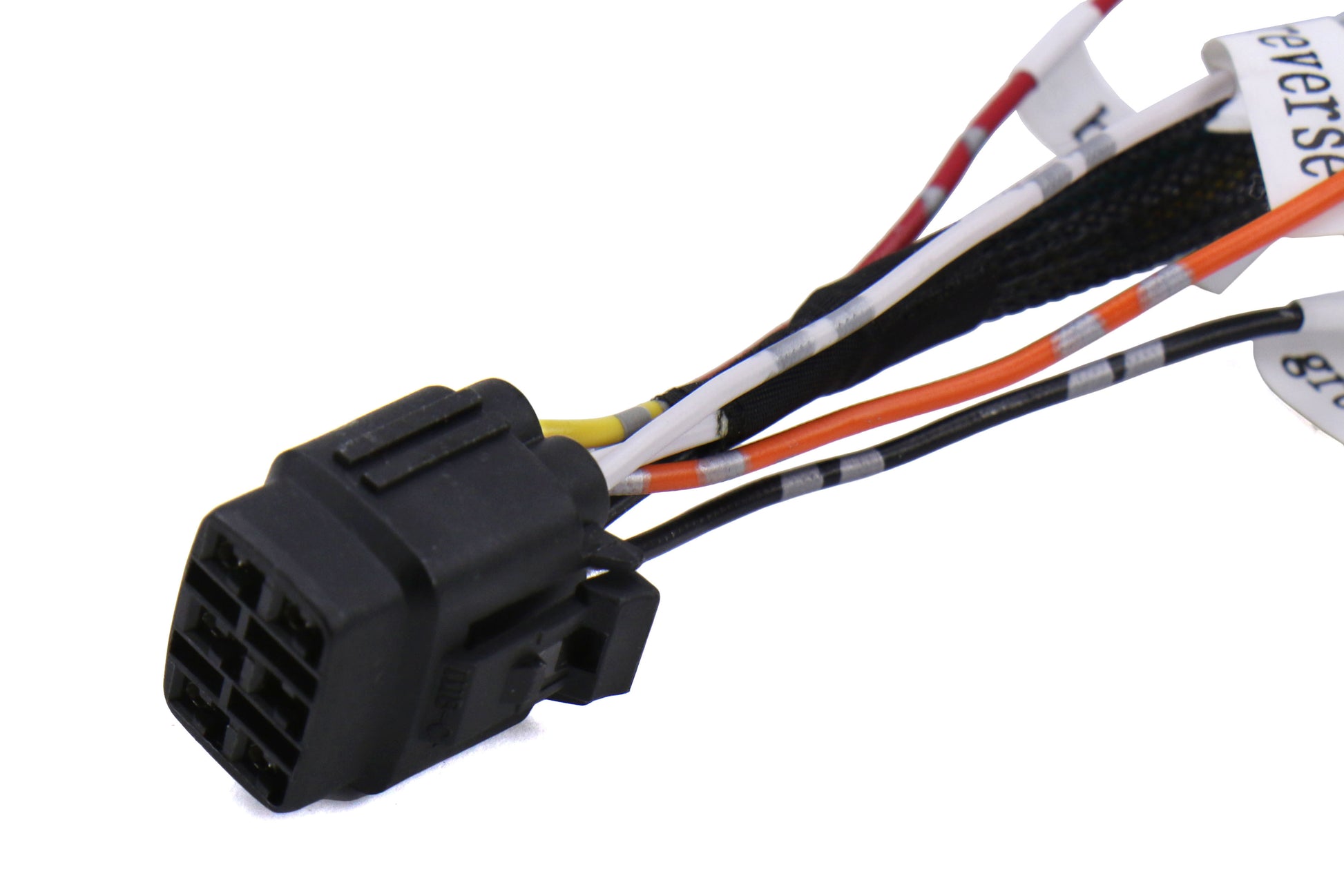

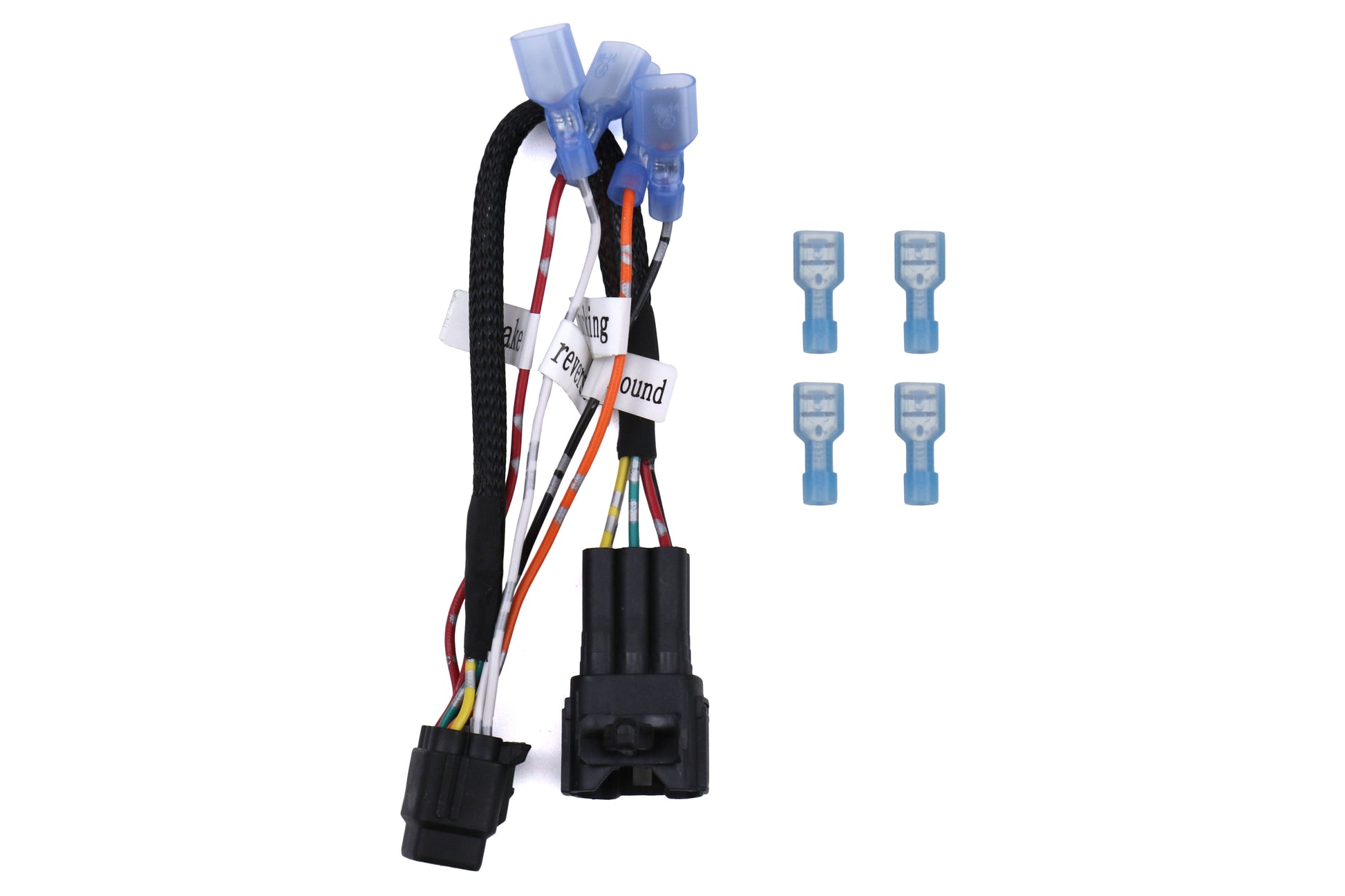

The harness has OEM style connectors on both ends which allows you to install this in-line with the factory wiring. 3 extensions allow you to connect the aftermarket fog / F1 lights.
For Additional Information, click here.
The bumper cover does not need to be removed in order to install this product. Simply undo the fasteners at the bottom of the bumper cover so you can gain enough access to knock out the factory plastic cap.
We highly recommend covering the lens of the new fog light casing with painter's tape or something similar during installation. This will prevent scratches while you maneuver it into position.
Our video will help your through the installation process, but please note the wires are different on this model vs the video. For reference, the OEM tail light wiring is as follows:
If you use the fog light extension harness, the negative and fog light wires will be supplied by that harness. You will only use the OEM tail light harness for the brown wire (brake light positive).
You can wire the lamp as a solid brake light only. You would do this by connecting the fog light wire (green) on the lamp to the brown wire on the OEM brake light wire (brown). To make this only an F1 light and not run always at night, just connect the fog light wire (green) AND brake wire (red) to the brown wire on the OEM brake light wire (brown).
While many states allow brake lights that flash and then turn solid, some do not. Please refer to your local laws pertaining to this feature.
It is not required that you hook up the brake light wiring. You can run the product as a rear fog light only.
