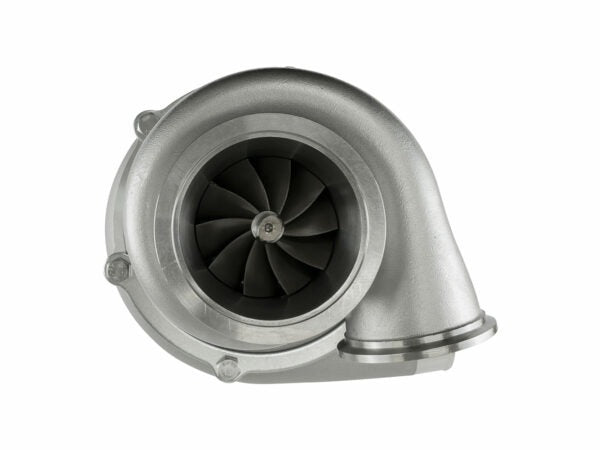

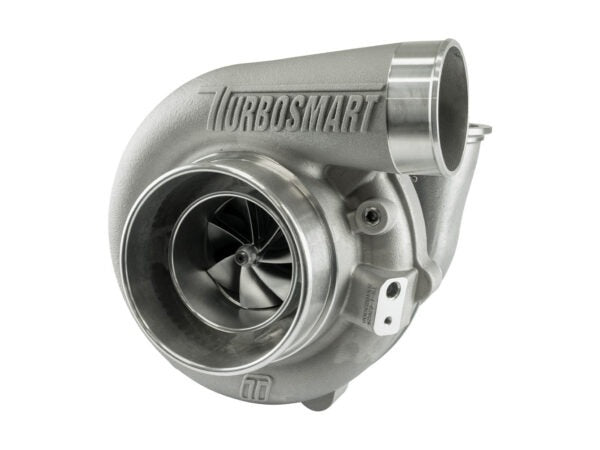

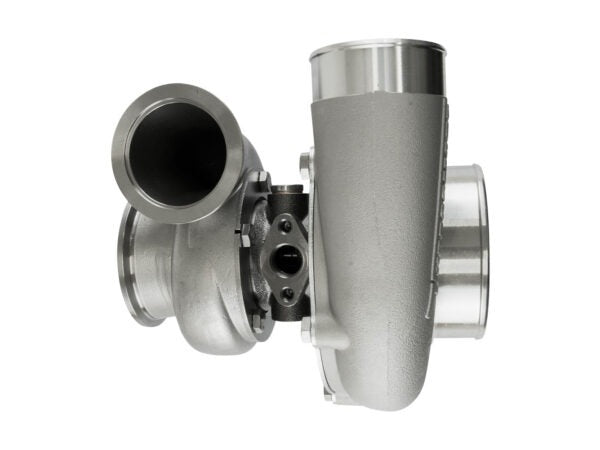

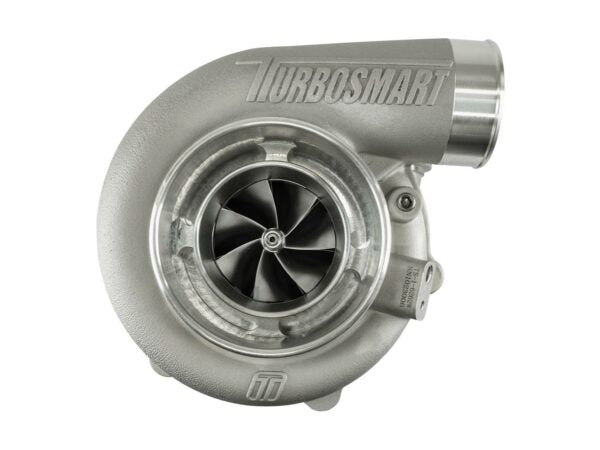

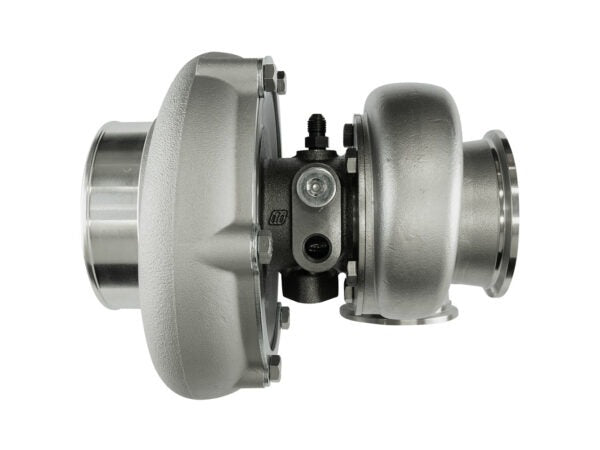

TurboSmart TS-2 Turbocharger (Water Cooled) 6262 V-Band 0.82AR Externally Wastegated - Universal

TurboSmart TS-2 Turbocharger: Power and Precision

Introducing the TurboSmart TS-2 Turbocharger, meticulously engineered for optimal performance in both Motorsport and enthusiast applications. Leveraging state-of-the-art materials, advanced design principles, and cutting-edge manufacturing techniques, the TS-2 series redefines turbocharger excellence.

Advanced Cooling and Lightweight Construction

The TS-2 series features water and oil-cooled turbochargers with lightweight investment cast turbine housings, setting new standards for durability and efficiency. Equipped with a proprietary bearing and main shaft configuration, these turbochargers deliver unprecedented transient response, maintaining the hallmark performance, quality, reliability, and support Turbosmart is renowned for.

Unmatched Responsiveness and Performance

Designed with an ultra-low rotating mass bearing and shaft assembly, the TS-2 turbochargers offer unparalleled responsiveness, ensuring exceptional performance even at lower shaft speeds. Paired with aggressive compressor aerodynamics and a unique turbine wheel, these turbochargers deliver consistent power under high loads and flow conditions.

Comprehensive Power Optimization

Taking a holistic approach to power enhancement, the TS-2 turbocharger series aims to minimize back pressure and maximize turbine efficiency across the entire engine spectrum. With its smaller, lighter, and faster design, the TS-2 turbochargers outperform competitors, offering unparalleled responsiveness and power delivery.

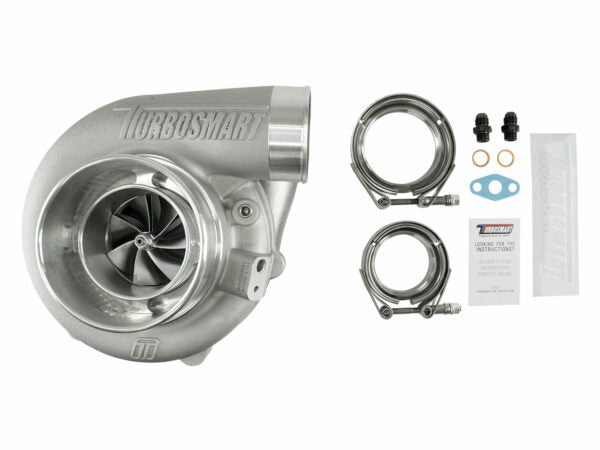

Kit Includes

1 x Turbosmart Performance Turbocharger
2 x Weld Flanges (Turbine inlet & outlet)
2 x V-Band Clamps (Turbine inlet & outlet)
1 x Water Feed Fitting kit
1 x Oil drain gasket

Features

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminium compressor covers
• CFD driven designed housings for optimal AR’s and flow
• T14 Inconel turbine wheel for extreme EGT’s
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm
• Compressor Inducer: 62mm
• Turbine Inlet: V-Band (2.25″)
• Turbine Exducer: 62mm
• Turbine AR: 0.82
• Turbine Outlet: V-Band (3.00″)
• Weight: 6.06kg / 13.3lbs
