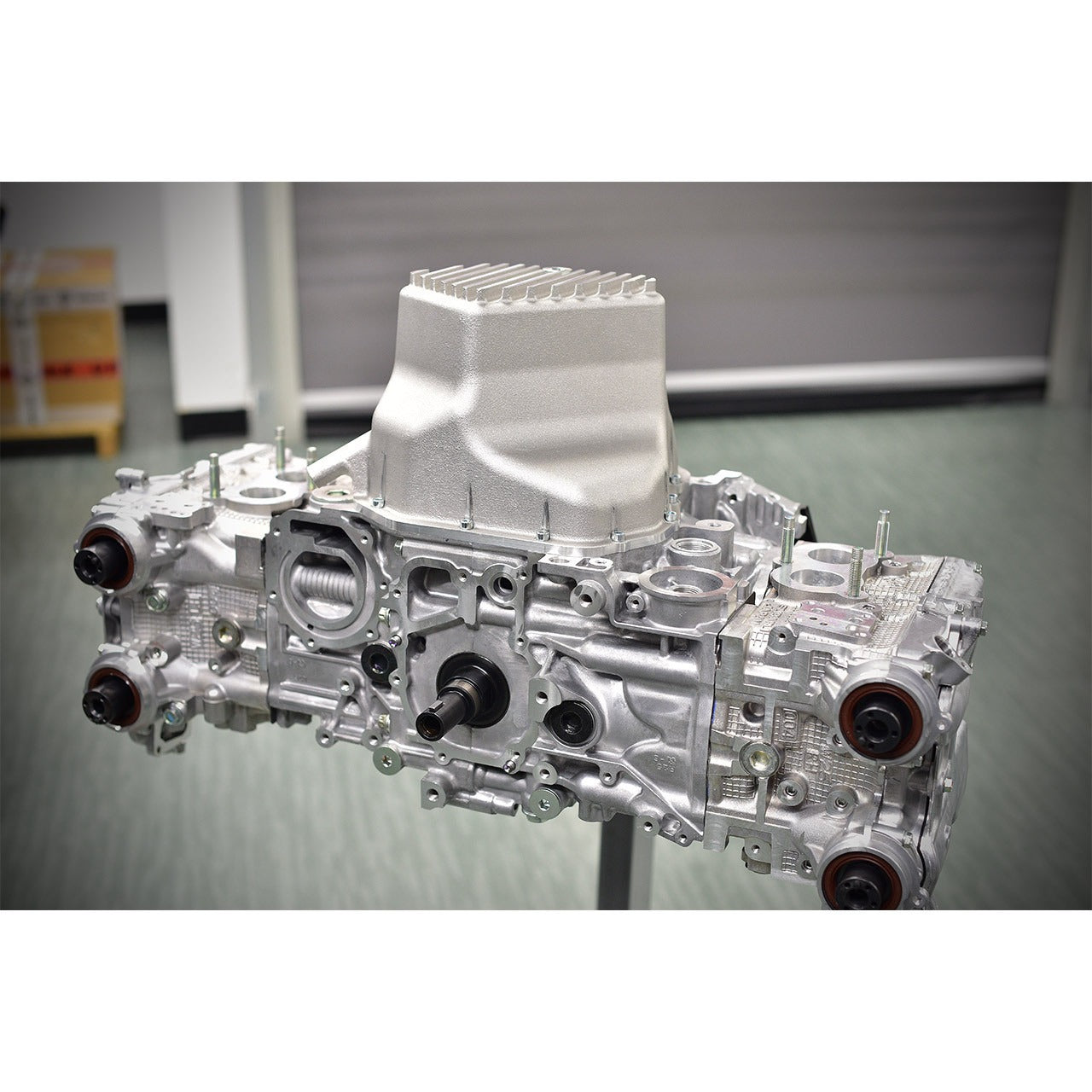

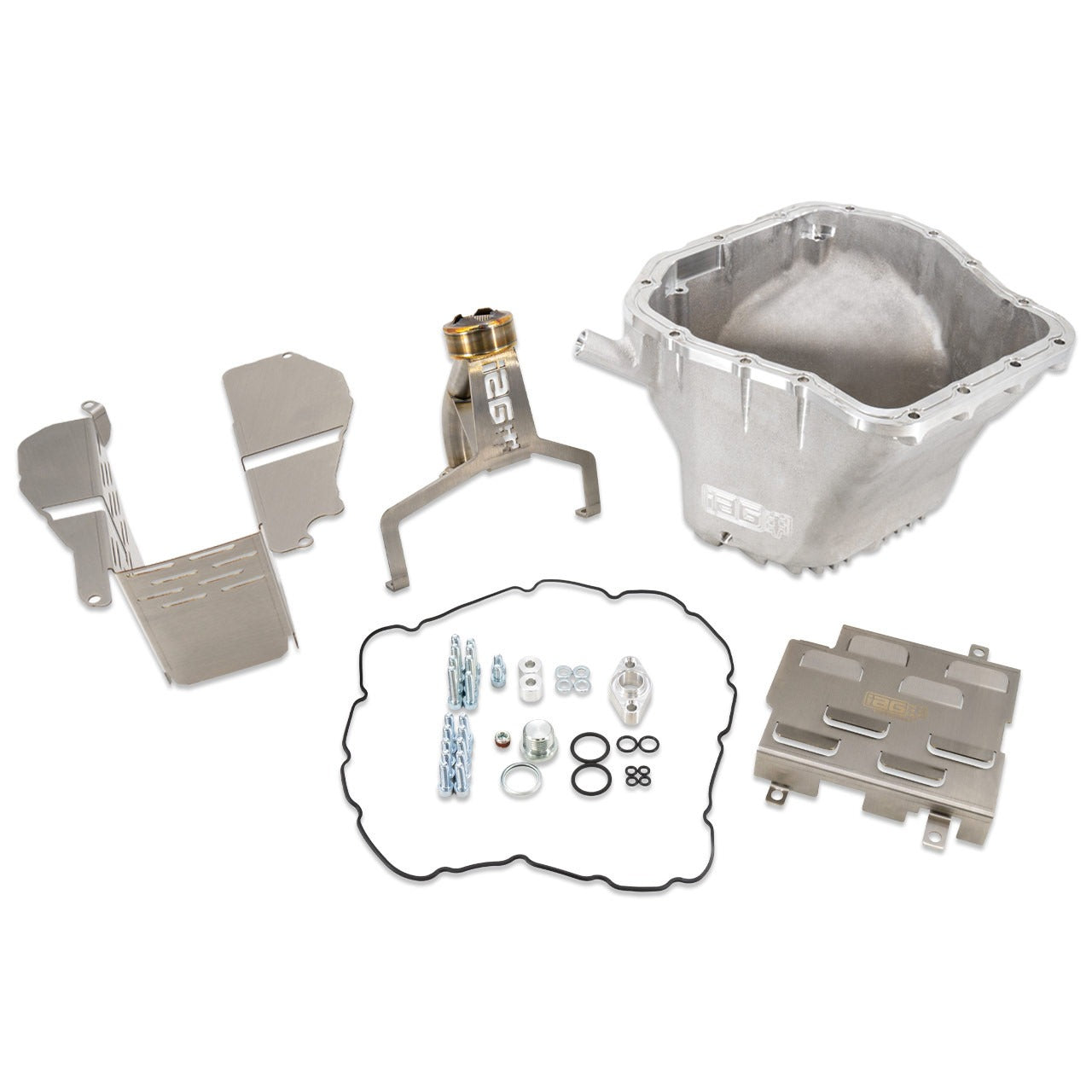

IAG EJ Street Series Oil Pan Package (Oil Pan, V2 Oil Pickup, Street Lower Baffle, Windage Tray) - Silver - 2002-2014 Subaru WRX / 2004-2021 STI / 2005-2009 Legacy GT / 2004-2013 Forester XT

Reduced Oil Temp & Bottom Facing Drain Plug

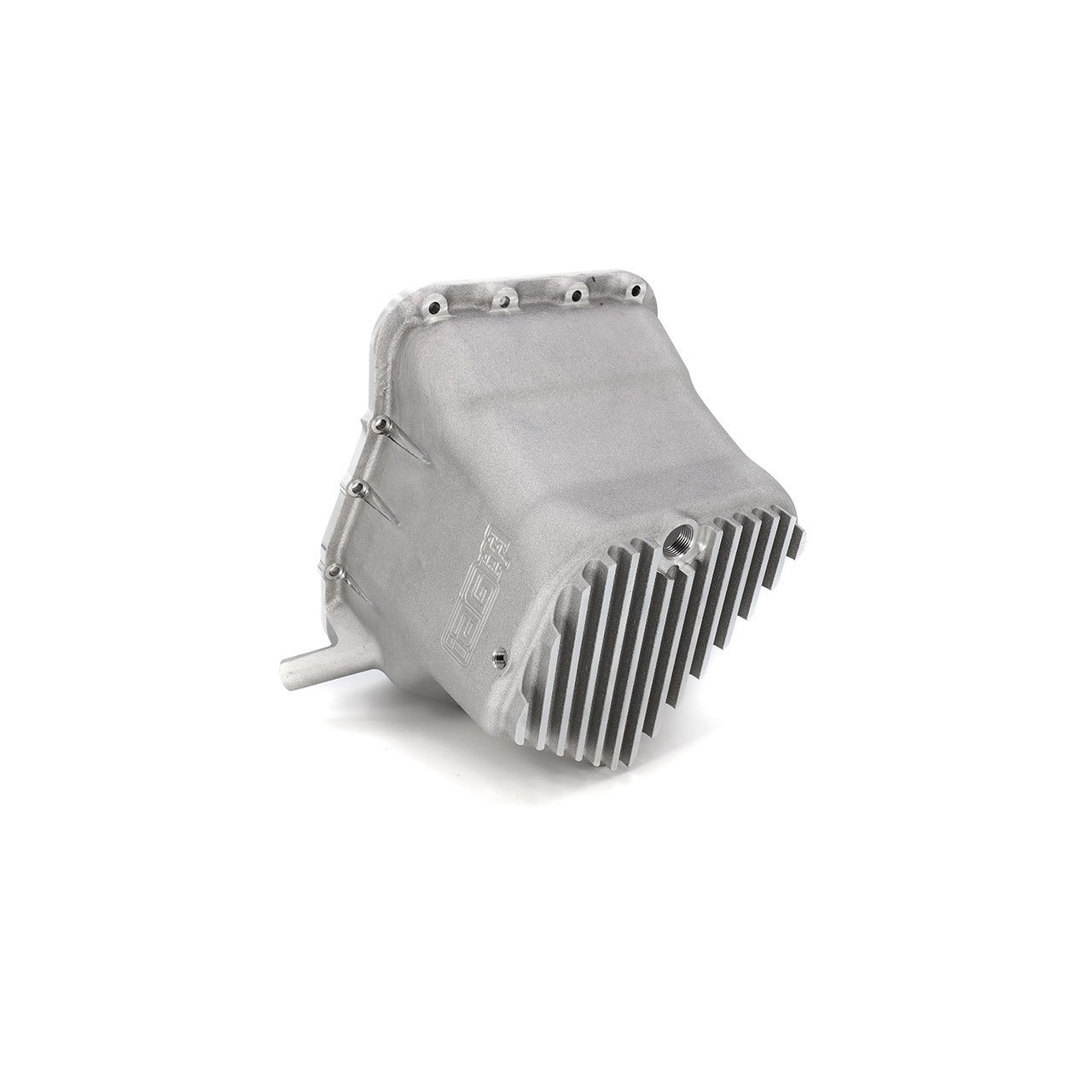

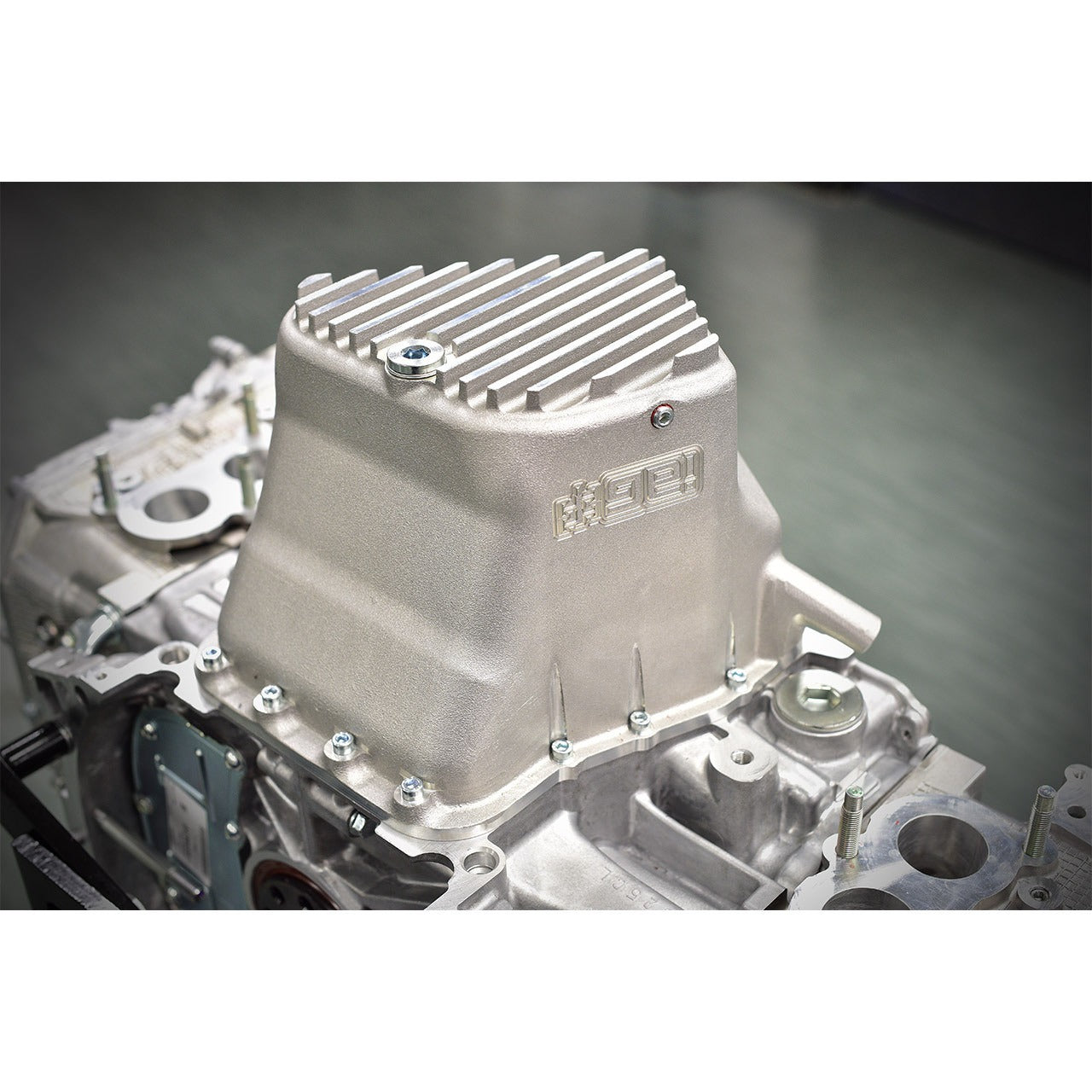

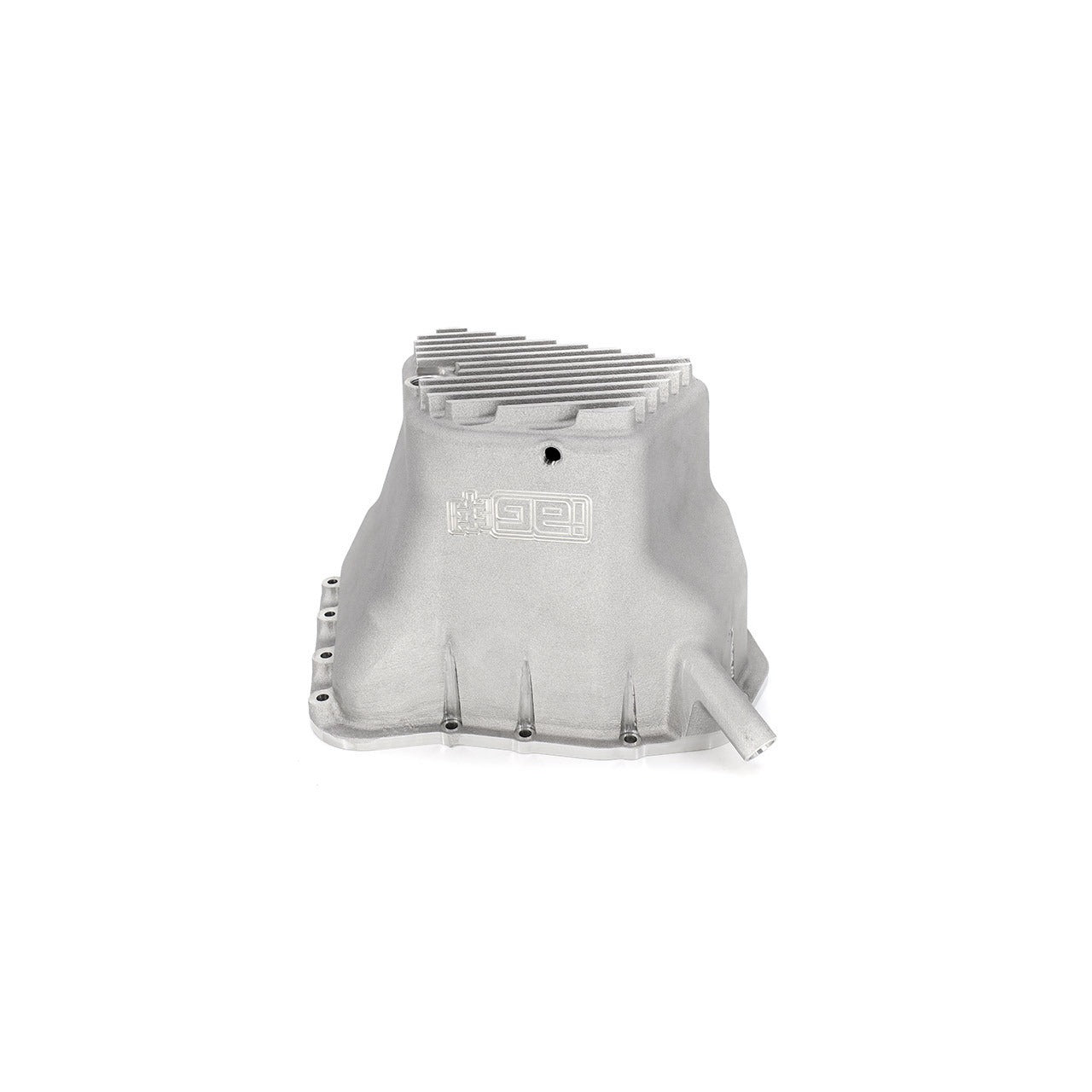

Designed with external cooling fins, the oil pan efficiently dissipates heat from the oil when airflow is present. The bottom-facing drain plug, strategically integrated into the lower cooling fins, facilitates convenient service access and ensures thorough removal of waste oil during maintenance changes. Equipped with a 1/8th inch NPT port, the oil pan is compatible with various oil temperature sensors, with an included plug for secure sealing when not in use.

Stainless Steel Oil Baffle

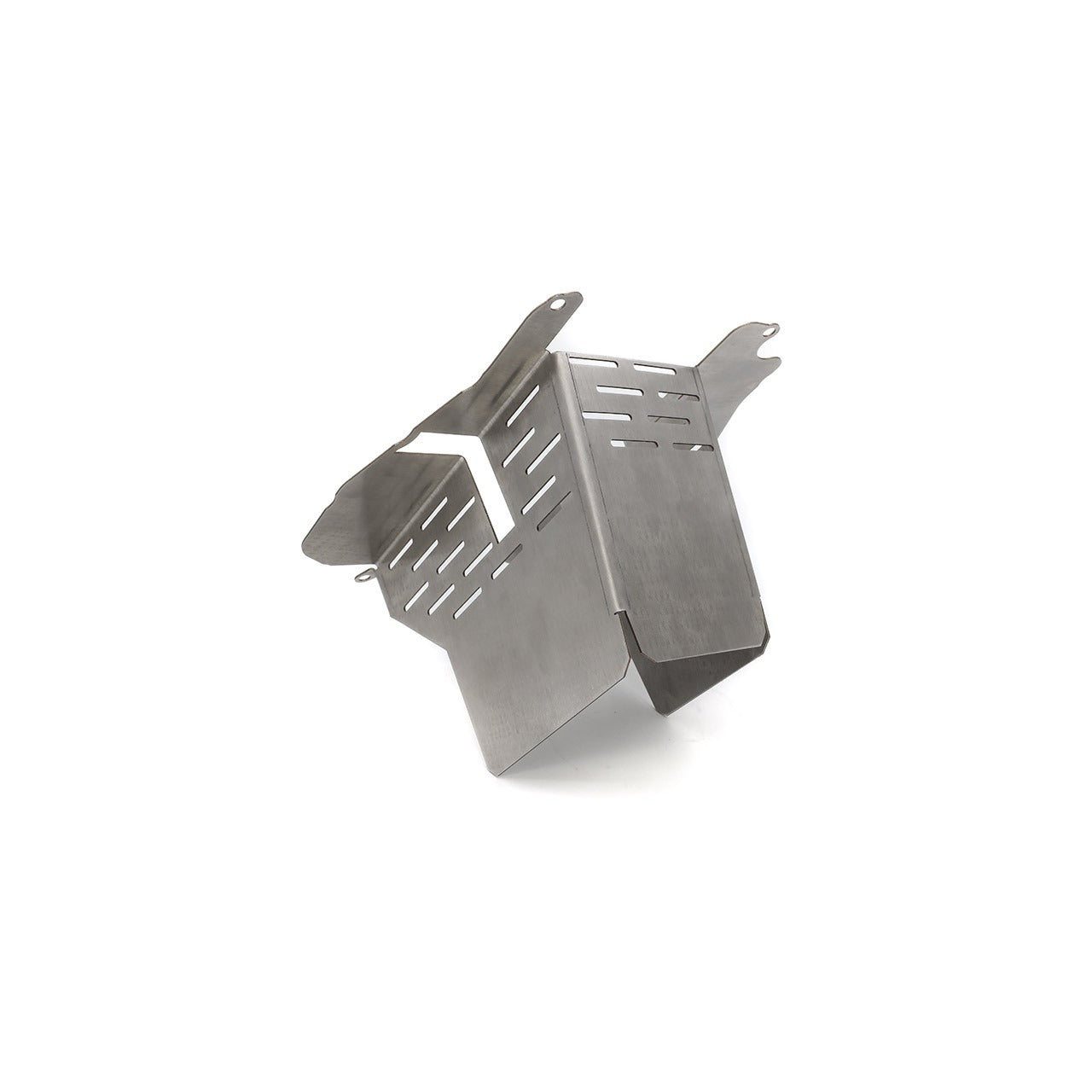

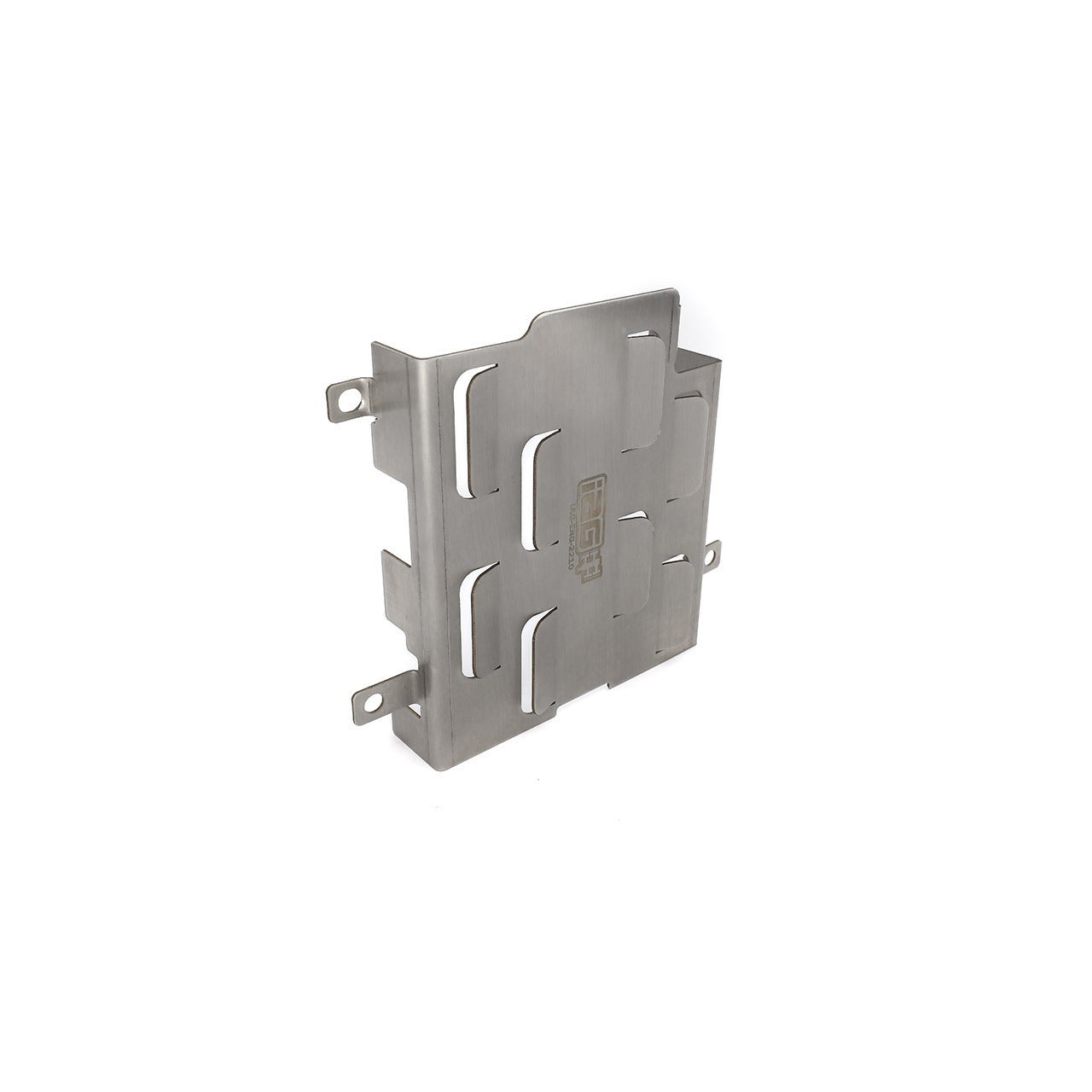

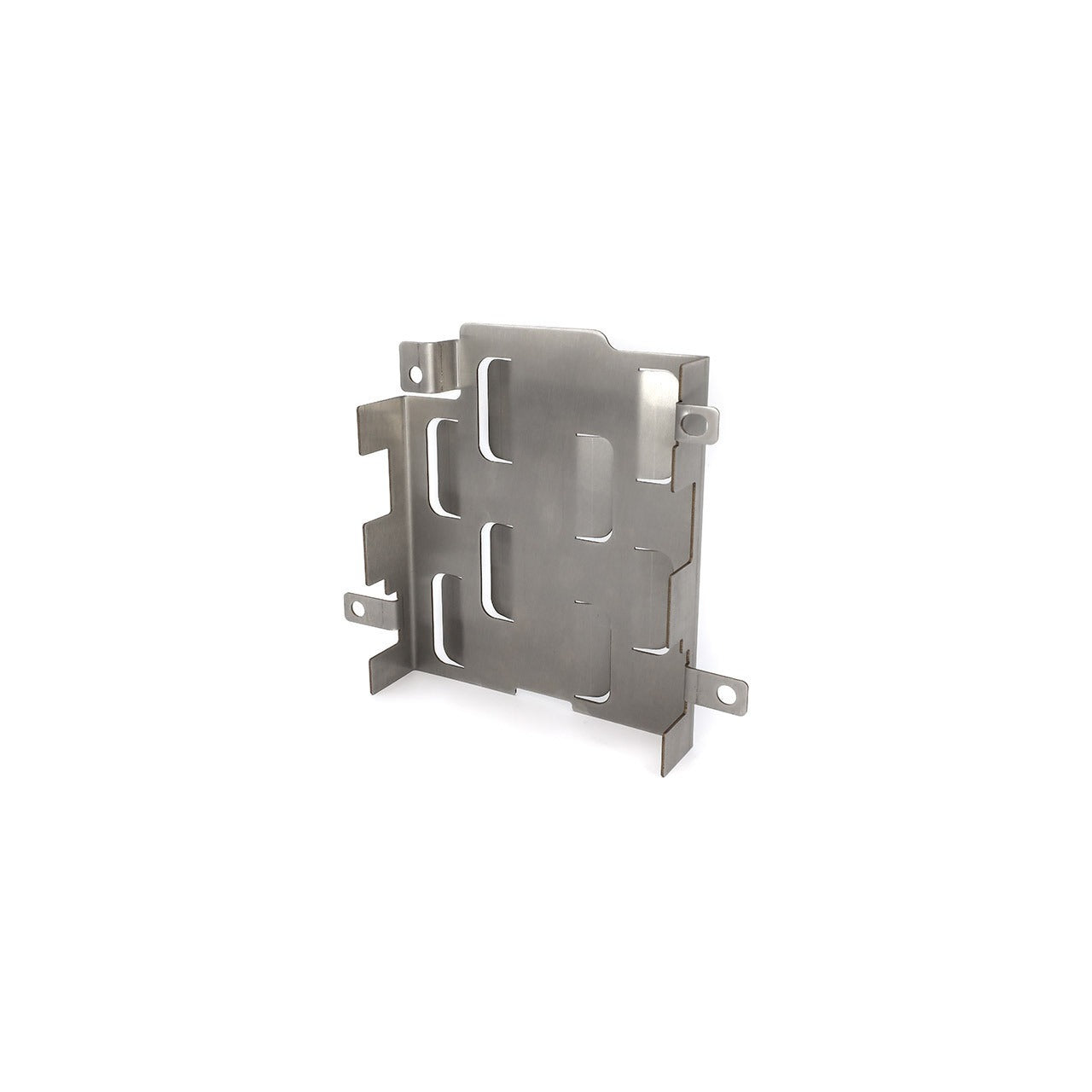

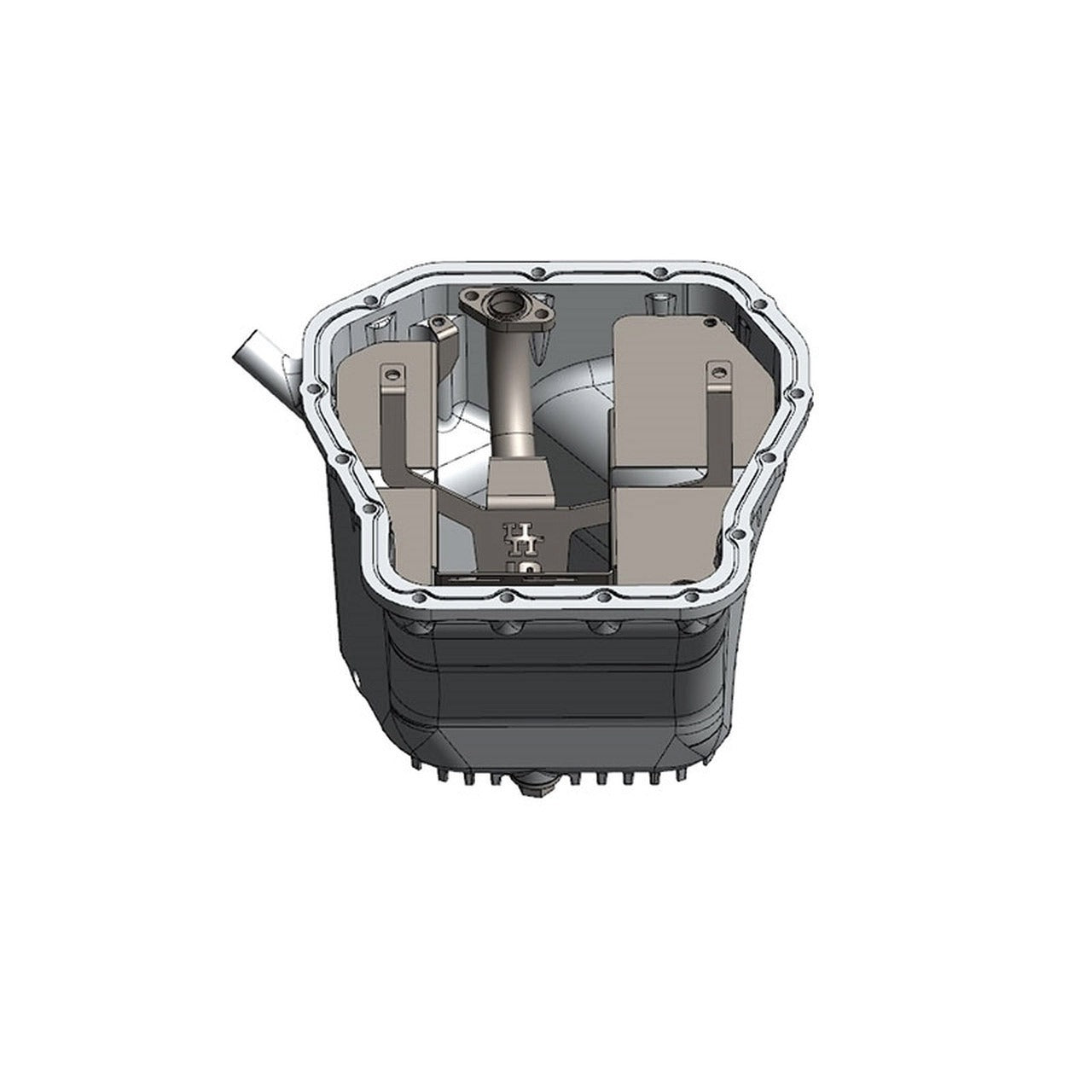

 Included in the IAG EJ Street Series Oil Pan Package is an internally integrated stainless steel oil baffle. This component prevents excessive oil movement within the pan, guarding against cavitation and potential oil starvation. The baffle is easily removable for future upgrades and straightforward cleaning, offering durability without the risk of cracking associated with welded baffles.

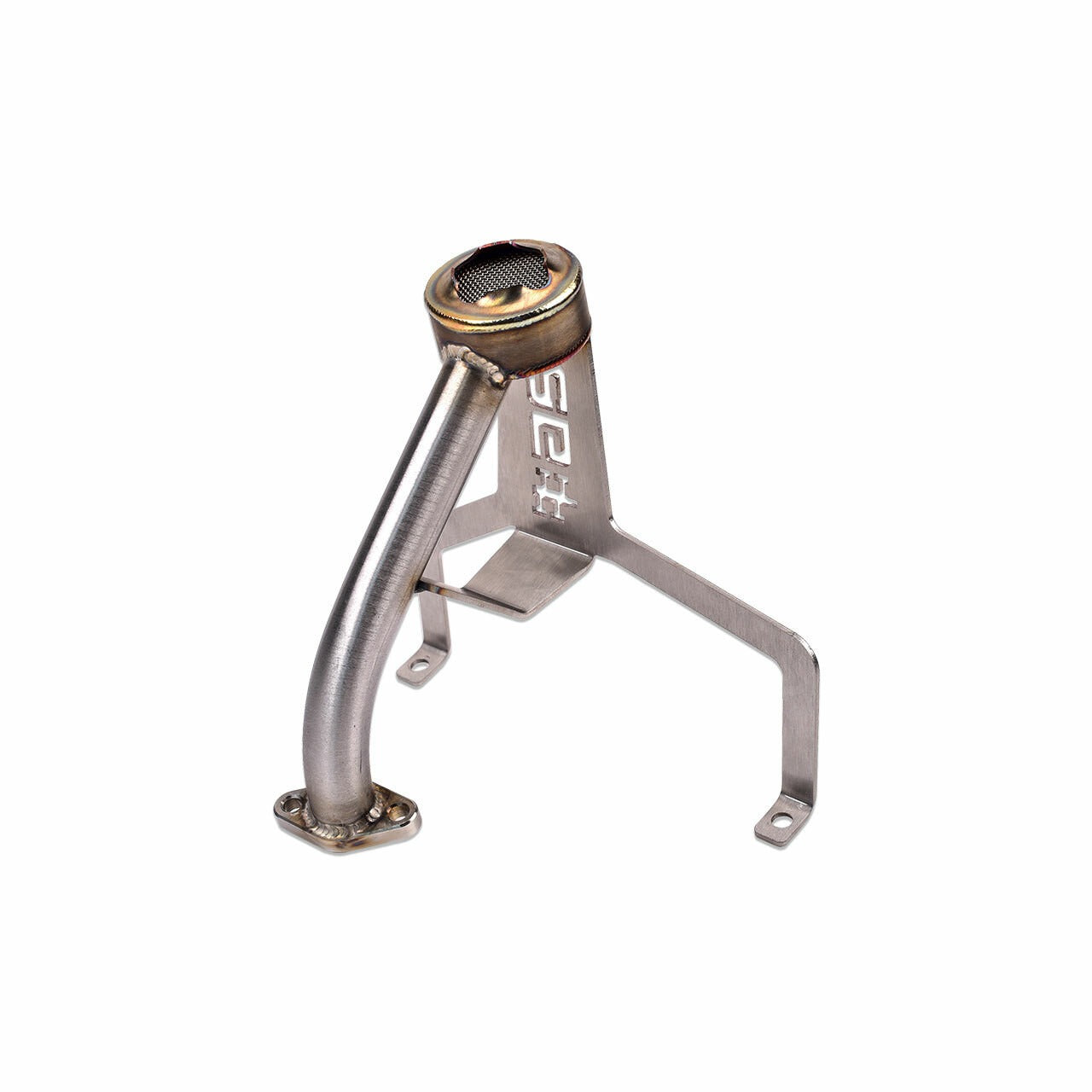

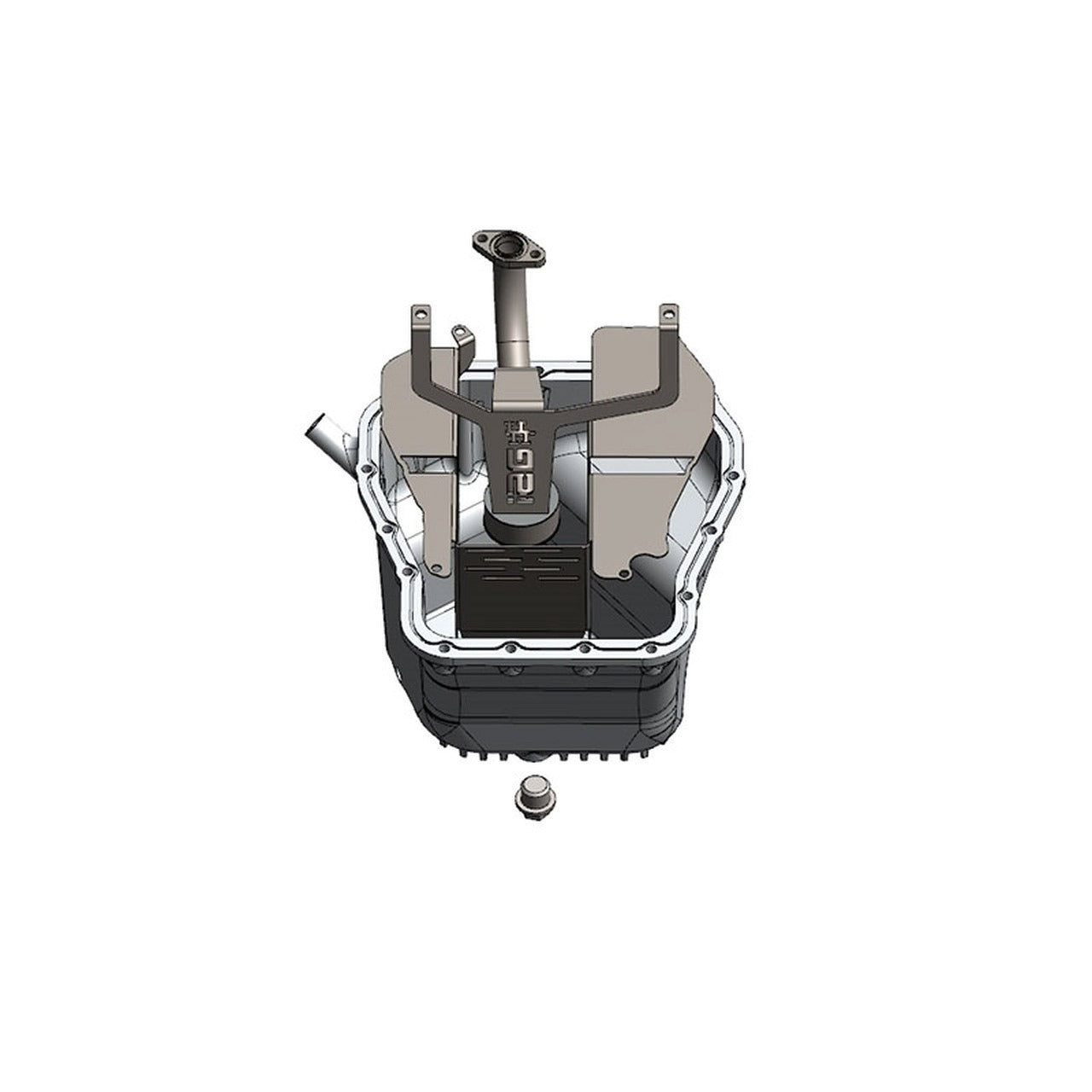

The IAG V2 Oil Pickup is designed to replace the OEM EJ25 oil pickup which is prone to failure. It's widely known that the OEM Subaru oil pickups often develop cracks and fail, leading to engine damage due to insufficient oil pressure. To prevent the cracking problems often seen in OEM oil pickup tubes, the IAG oil pickup is constructed from heavy-gauge steel tubing. This tubing is TIG welded and has twice the thickness of the original, preventing cracks and potential engine damage. It also has a 3/8" stainless steel flange which has been precisely machined to fit with the block and sealed with a Viton O-ring. The V2 Oil Pickup has an integrated stainless steel mounting bracket and is supported by two mounting points, unlike the OEM design with a single mounting point. The increased material thickness, along with the two-point heavy-duty mounting brackets help to protect the pickup against fatigue and failure.
