Aem Electronics Digital Dash Display CD-7LG Logging, Gps Enabled Racing Dash, Can Input Only W/ Gps - Universal

The CD-7LG Carbon Digital Dash Display will monitor all major parameters in your vehicle with a high-res display.

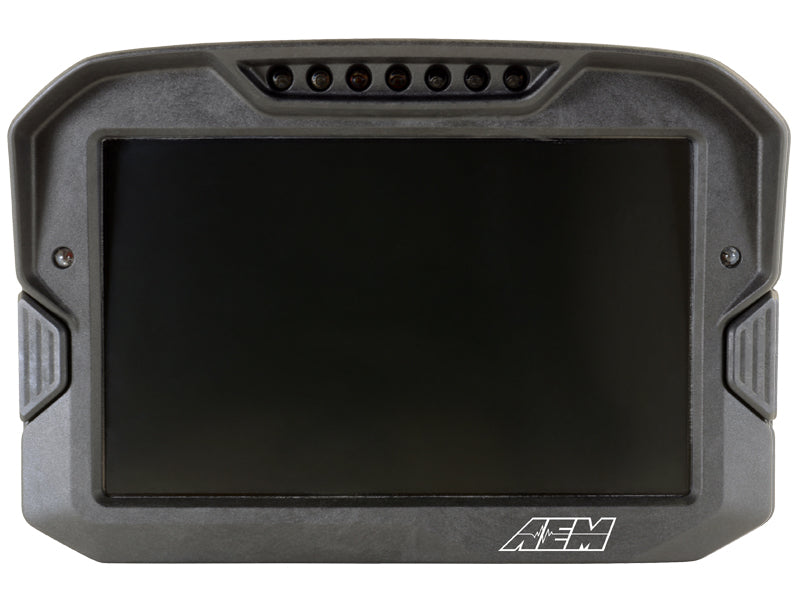

AEM Electronics CD-7LG Carbon Digital Dash Display

---

CD-7LG Carbon Digital Dash Display Specs:

• Full color 7" screen with 800x480 resolution
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable with all versions of the CD-5 Carbon
• The wiring interface/harness is identical to the CD-5 carbon
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Total display weight of 20.9/595 grams
• IP65 water resistance-open cockpit, marine, and motorcycle safe
• Accepts channels from two separate user programmable CAN bus connections-works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Plug and play adapter cables available for Holley, Link, MSD Atomic, and Vi-Pec ECUs
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable
• Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles
• Available with or without 200mb internal logging
• Available with or without on-board 20Hz GPS receiver and antenna
• The option is available to add an 8 channel K-type EGT CAN Module for 8 additional temps
• Seven programmable pages including four main pages, alarm, on-change, and start-up pages
• Dedicated alarm page layouts and input your channels and text, or create your own from scratch
• Free DashDesign Graphics Editor software
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Two programmable LEDs
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons
• Headlight-in connection dims the dash and LEDs during night operation
• Two extra switch inputs included for displaying user-triggered events for blinkers, high beams, etc
• User-supplied graphics
• Convert CAN bus channel values to user-defined text in multiple languages

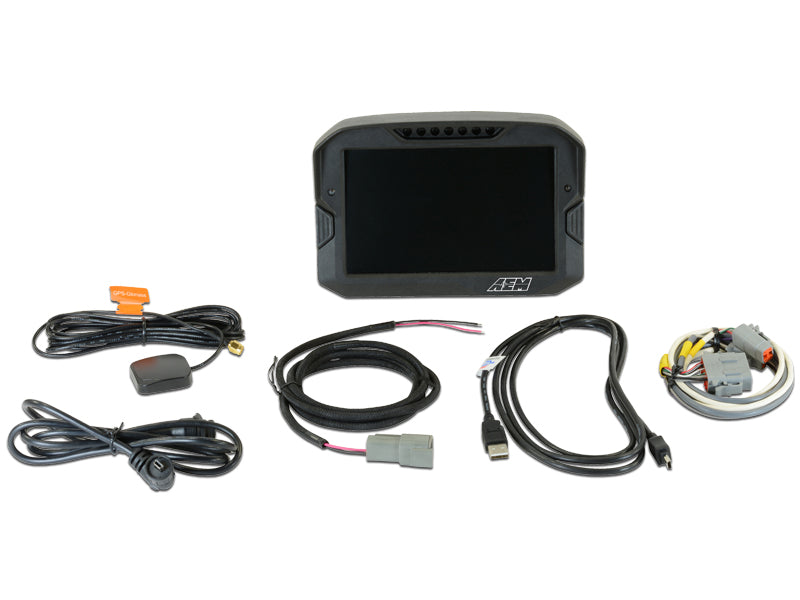

• WIRING INCLUDED

AEM Electronics Digital Dash Display

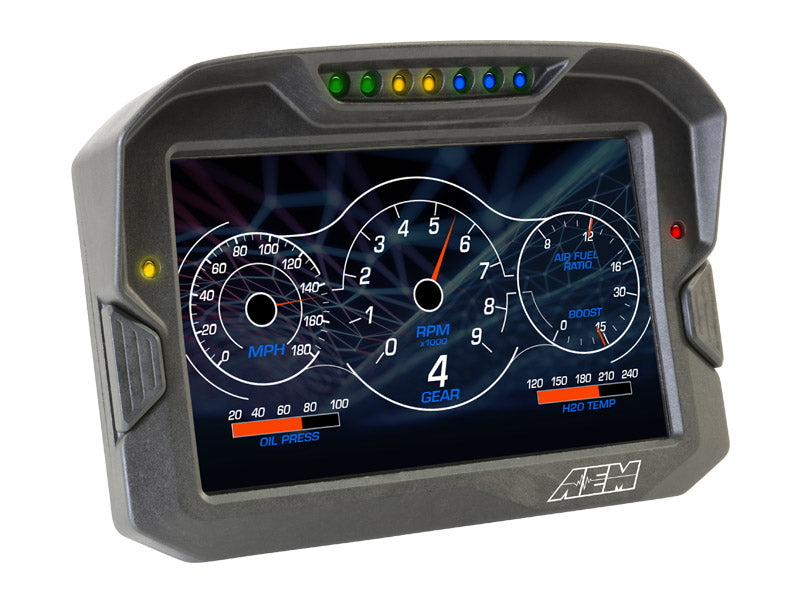

This is the ultimate display unit for those of you who need to monitor multiple parameters in your vehicle in a fast and accurate manner. This display features a full-color 7-inch high-resolution screen that is customizable for the user's preference.

Whether if you are building a race car or a high-powered street car, the CD-7LG Carbon Digital Dash Display provides unsurpassable readings to the major parameters of your vehicle to make sure your vehicle's vitals are all in check under high-performance driving conditions.
