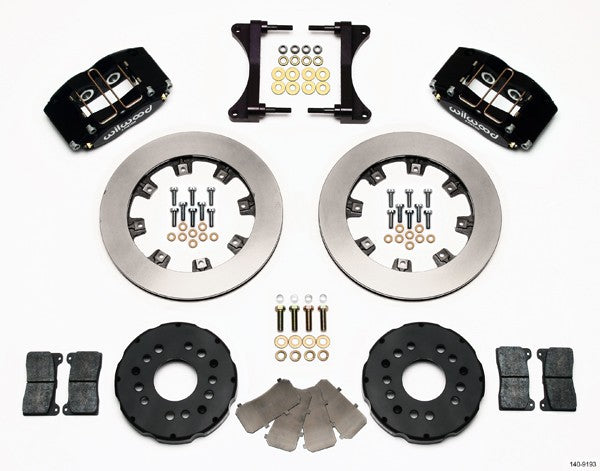

Wilwood 4R Slotted Front (Black) - 2013-2016 Scion FR-S / 2013-2024 Subaru BRZ / 2017-2024 Toyota 86

This Wilwood big brake kit for the Scion FRS and Subaru BRZ is actually the 2003+ WRX in which the FRS and BRZ both share the same brakes. This kit is a direct bolt up as we also include the only change in the kit needed which is different bolts for the caliper mounting bracket. The WRX and FRS both share the same brake master cylinder and other components so this kit is perfect for those on a budget.

This Wilwood big brake kit for the Scion FRS and Subaru BRZ is actually the 2003+ WRX in which the FRS and BRZ both share the same brakes.

This kit is a direct bolt up as we also include the only change in the kit needed which is different bolts for the caliper mounting bracket. The WRX and FRS both share the same brake master cylinder and other components so this kit is perfect for those on a budget.

Stock FRS/BRZ brake rotor specs:

Diamiter:11.5 inches
Thickness: 22mm

Wilwood Kit brake rotor specs:

Diamiter:12 inches
Thickness: 20.5mm

Weight Savings over stock brakes is 16lbs per corner! This kit will work well for street and autocross use with light tracking. Heavy track use will need a different BBK.

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.

Caliper Information:

Finish Color: Black Anodize
Piston Count: 4
Piston Area (In): 4.12
Piston Type: Aluminum
Mount Type: Radial
Brake Pad Plate: 7816
Brake Pad Area (In): 6.36
Brake Pad Volume (In): 3
Pad Compound: BP-10

Rotor Information:

Type: GT 36 Curved Vane
Style: GT Slotted
Surface Finish: Black Electro Coat
Material: Aluminum
Outside Diameter (In.): 12
Width (In.): .81
Vane Count: 36 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
